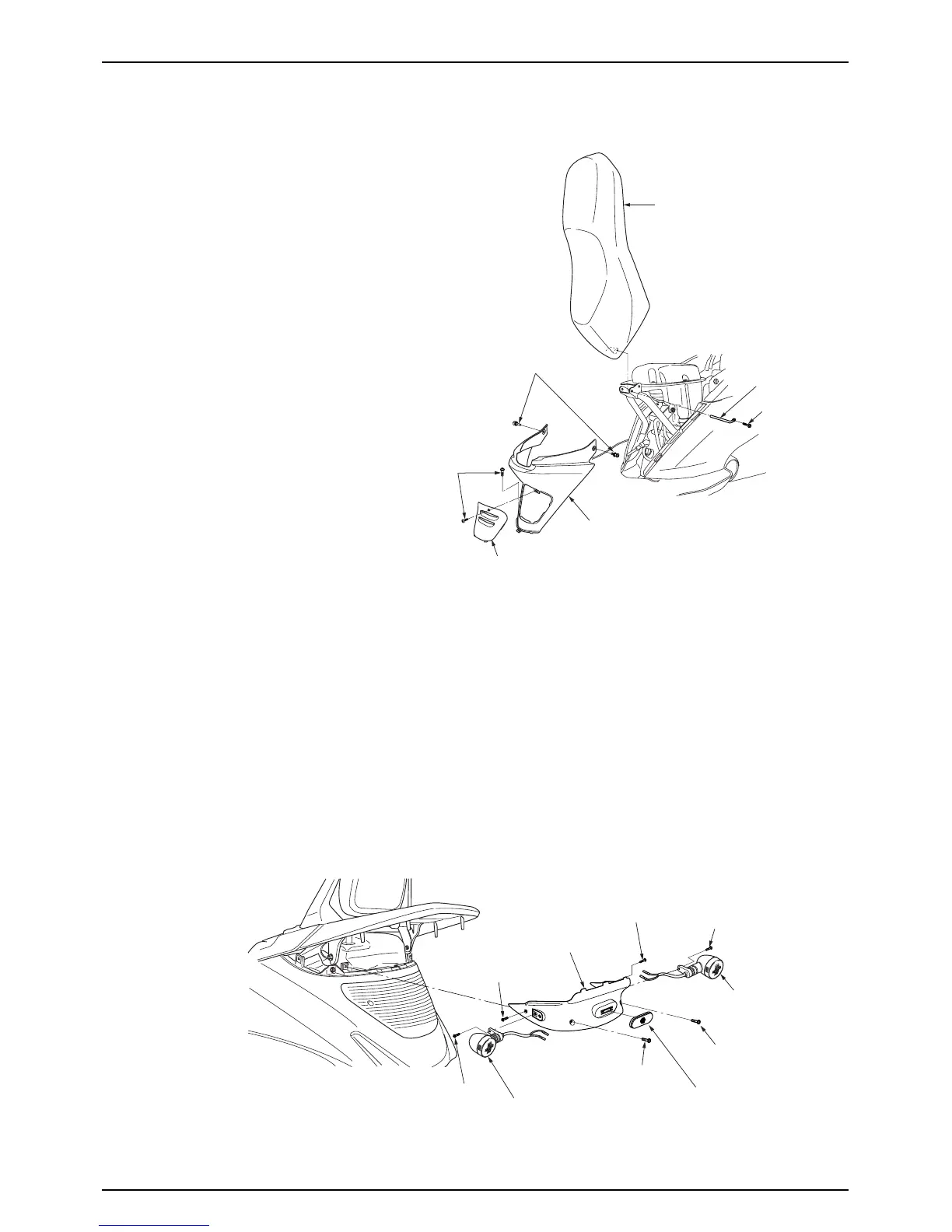

EXTERNAL PARTS
SEAT
WASHERSCREW
SPECIALSCREW
PLUGMAINTENANCECOVER
CENTERCOVER
FLANGEBOLT
HINGEPIN
SPECIALSCREW
REARCENTERCOVER
SPECIALSCREW
WASHERSCREW
RH.REARWINKERASSEMBLY
REFLEXREFLECTOR
SPECIALSCREW
SPECIALSCREW
LH.REARWINKER
ASSEMBLY
WASHERSCREW
CENTER COVER
● Release the seat lock by turning the main switch key to
open the seat.
● Loosen the flange bolt securing the frame, and remove
the hinge pin, and then remove the seat.
● Loosen the plug maintenance cover setting special
screw securing the center cover, remove the plug
maintenance cover.
● Loosen the 2 washer screws securing the body cover.
● Loosen the special screw securing the front of the floor
panel.
● Draw the upper part of the center cover to remove it.
● Install in the reverse order of removal.
REAR CENTER COVER
● Loosen the 4 special screws securing the body cover.
● Remove the rear center cover, disconnect the RH./LH.
winker wiring.
● Loosen the RH./LH. winker setting washer screws
securing the rear center cover, remove the RH./LH.
winker.
● Remove the rear reflex reflector securing the rear
center cover.
● Install in the reverse order of removal.
