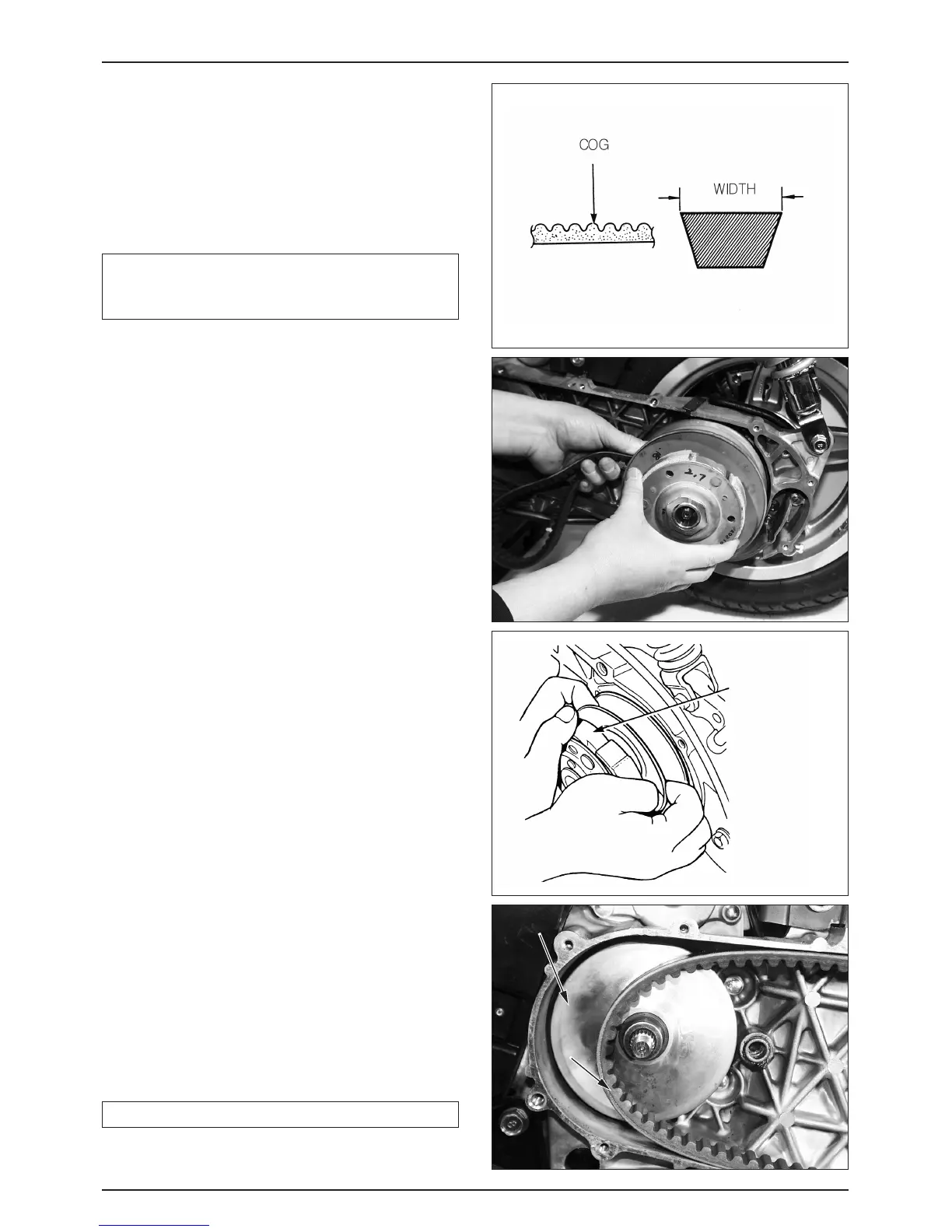

DRIVE BELT INSPECTION
● Check the drive belt for cracks, pry separation and
wear; replace as necessary.
● Measure the width of the drive belt as shown.
● Replace the belt if the service limit is exceeded.
SERVICE LIMIT : 20.5mm
NOTE
·Use only a genuine DAELIM replacement drive belt.
·Do not get oil or grease on the drive belt or pulley
faces. Clean off any grease or oil before reinstalling.
DRIVE BELT INSTALLATION
● Temporarily install the driven pulley sub assembly on
the drive shaft.
● Turn the pulley clockwise and spread the faces apart
while installing the drive belt.
● Remove the pulley assembly once with the drive belt
installed.
● Put the drive belt over the movable drive face.
● Install the drive face to the LH. crank shaft, and install
the kick starter ratchet.
● Hold the drive face using the drive face holder and
tighten the nut to the specified torque.
TORQUE VALUE : 7.0-8.0 kgf
·
m
TOOL : DRIVE FACE HOLDER
NOTE
·Hold the faces apart preventing them from closing.
7-7
LH. CRANKCASE COVER/KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
DRIVEN PULLEY
SUB ASS'Y
MOVABLE DRIVE FACE
DRIVE BELT
