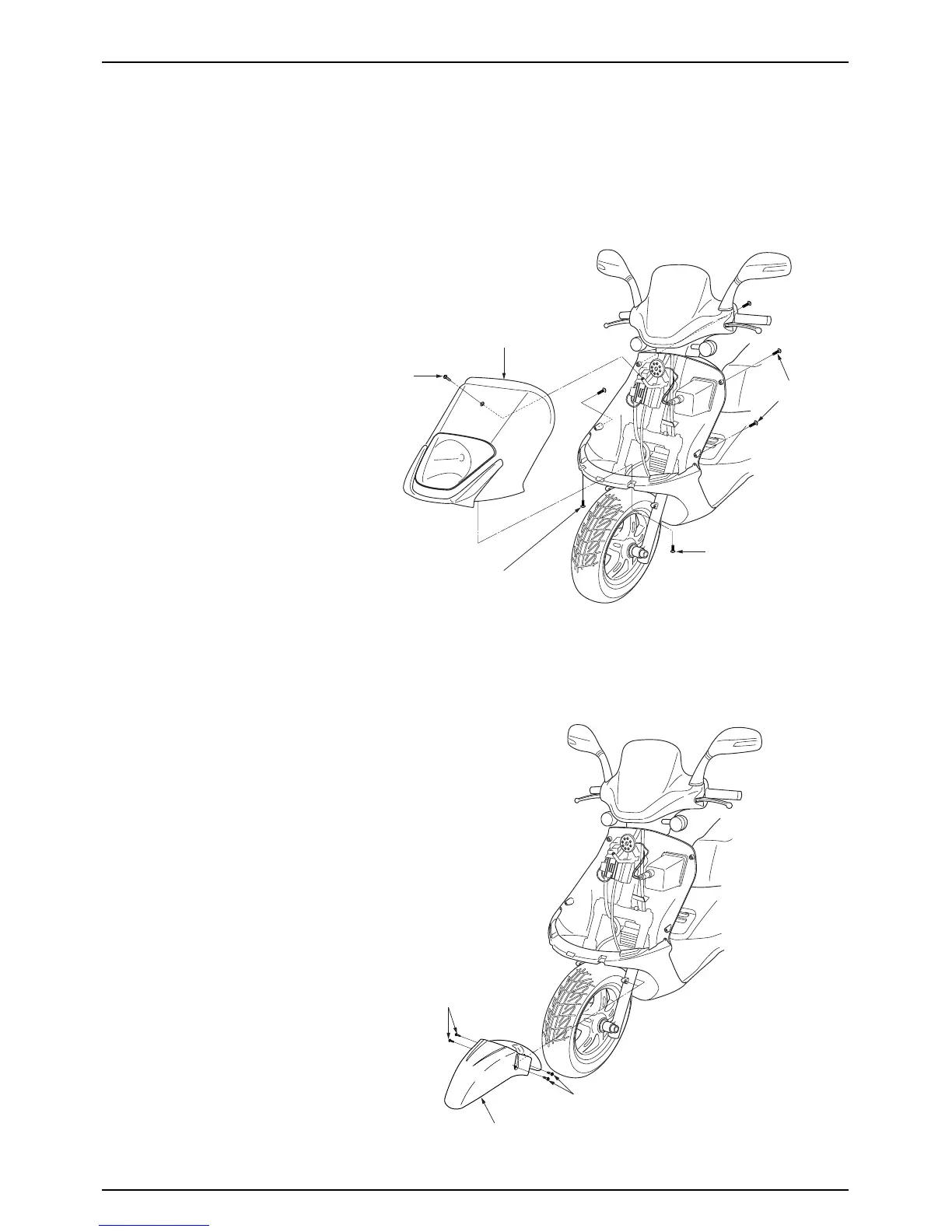

FRONT COVER
● Loosen the 4 special screws securing the inner box.
● Loosen the special screw securing the front of the front
cover.
● Loosen the 2 special screws securing the front under
cover.
● Draw the upper part of the front cover to remove it.
● Disconnect the headlight wiring and remove the
front cover.
● Loosen the 4 flange bolts securing the headlight,
remove the headlight.
● Loosen the 4 tapping screws securing the top cover,
remove the front protector.
● Install in the reverse order of removal.
FRONT FENDER
● Loosen the oval screw securing the speedometer gear
box, remove the speedometer cable.
● Remove the wire grommet from the front fender.
● Loosen the 2 special screws securing the LH. front
cushion.
● Loosen the 2 special screws securing the RH. front
cushion.
● Install in the reverse order of removal.
