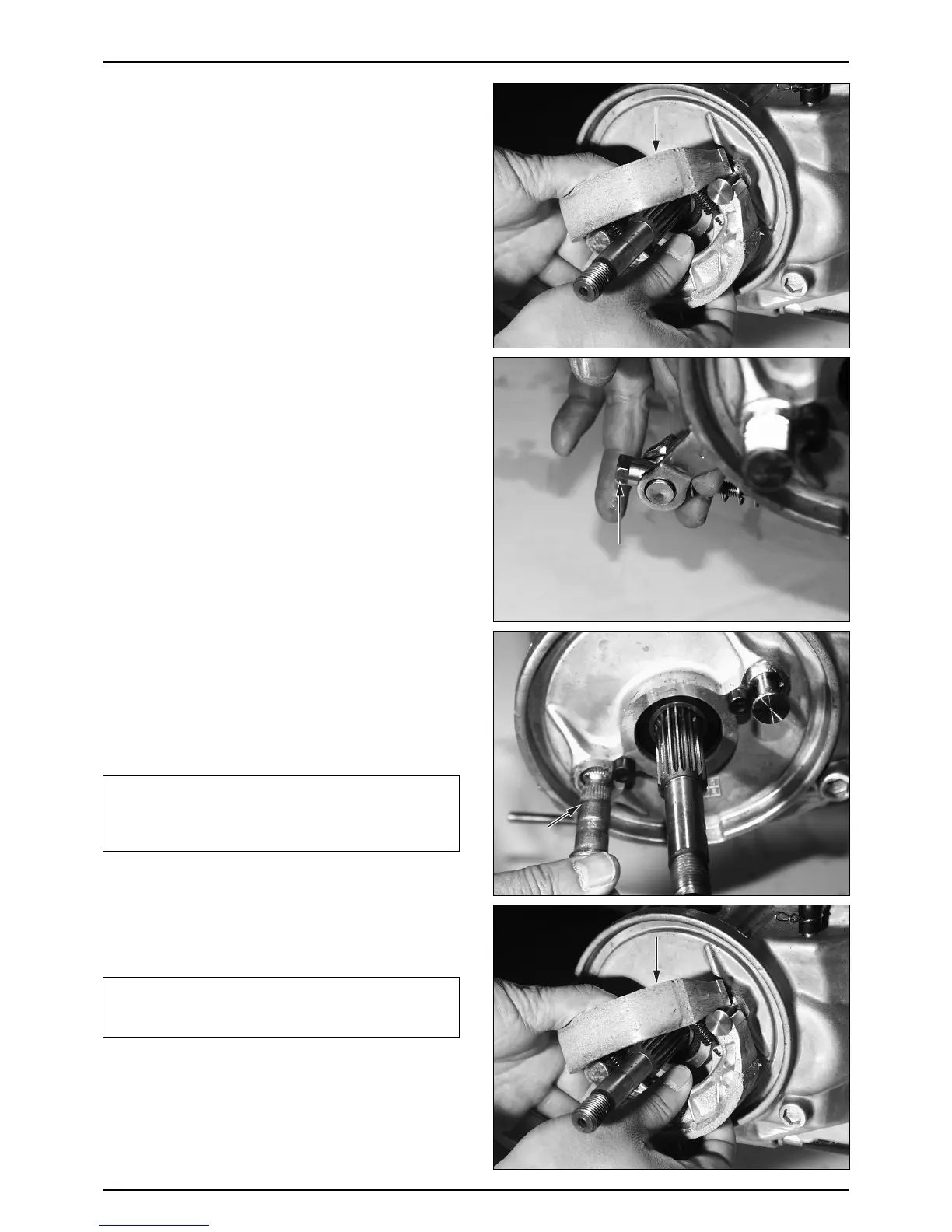

BRAKE SHOE DISASSEMBLY
● Manually open the brake shoe and remove it.
● Remove the shoe spring from the brake shoe.
BRAKE CAM DISASSEMBLY
● Loosen the adjust nut B, remove the brake arm joint B.
● After removing the brake arm spring, loosen the brake
arm fixing bolt.
● Remove the rear brake arm, rear brake indicator, dust
seal.
● Remove the rear brake cam.
PARKING BRAKE ASSEMBLY/INSTALLATION
● Apply small amount of grease to the brake cam.
● Install the brake cam.
● Install the rear brake dust seal, indicator, rear brake
arm.
NOTE
·Align the punch marks of the brake arm and the
brake cam before assembly.
·Remove the excessive grease after assembling the
shoe.
● Install the brake shoe and spring.
● Install the rear wheel. (⇨13-3 )
NOTE
·Check the brake for smooth operation.
·After installing the parking brake, be sure to adjust
the parking brake free play.
● Install the adjust nut B and brake arm joint B.
13-6
REAR WHEEL/BRAKE/SUSPENSION/REAR SWING ARM
