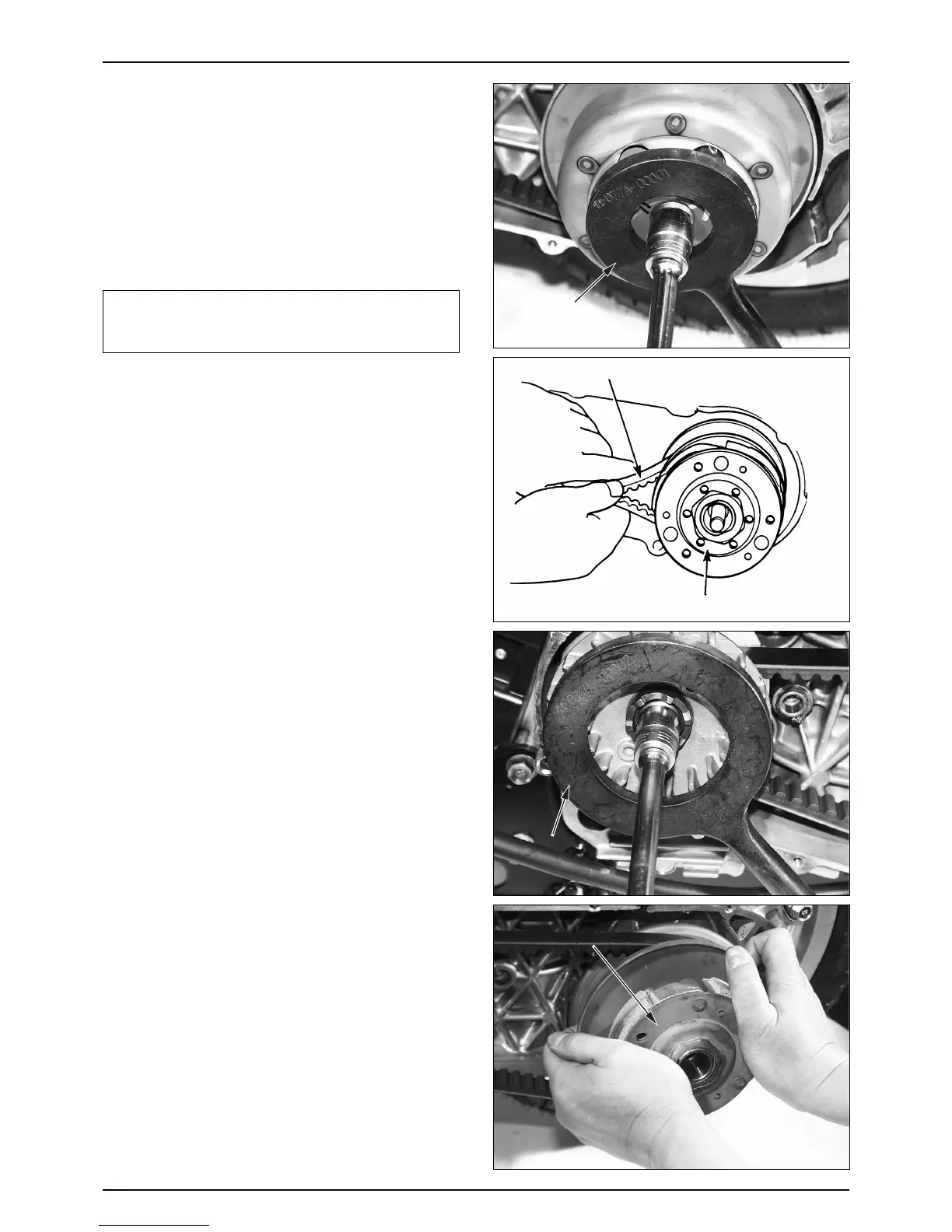

DRIVE BELT
REMOVAL
● Remove the LH. crankcase cover. (⇨7-2 )
● Hold the clutch outer using the universal holder and
remove the nut.
● Remove the clutch outer.
TOOL: UNIVERSAL HOLDER
CAUTION
·Use the special tool when loosening the lock nut.
Holding the rear wheel or rear brake will damage the
final reduction system.
● Squeeze the drive belt into the pulley groove as shown
so that it slackens enough to remove the driven pulley
from the drive shaft.
● Loosen the drive face setting nut 12mm with the clutch
center holder.
● Remove the kick starter ratchet and drive face.
TOOL : DRIVE FACE HOLDER
● Remove the driven pulley sub assembly with the drive
belt in place.
● Remove the drive belt from the driven pulley groove
and drive pulley groove.
7-6
LH. CRANKCASE COVER/KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
