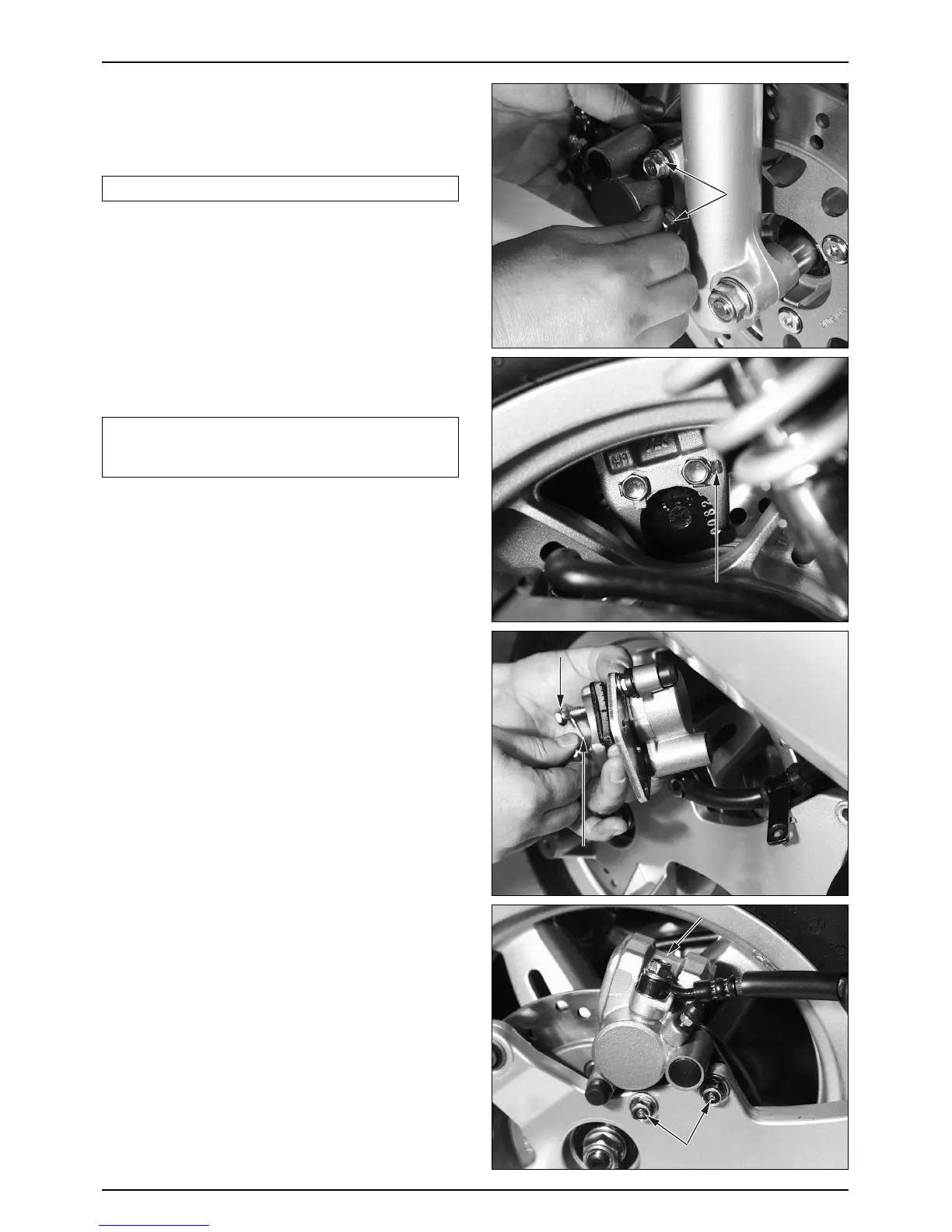

● Install a new brake pad, lock plate, and hanger pin.
● Bend the lock plate tangs, and fix the hanger pin.
● Install the brake caliper into the RH. front fork.
NOTE
·Be careful not to damage the brake pad.
REAR BRAKE PAD
NOTE
·When replacing brake pads, replace whole set.
·Do not remove the brake hose when replacing brake
pads.
● Open the lock plate tangs, and loosen the pad pin bolt.
● Loosen the rear brake hose setting clamp bolt securing
the EX. muffler.
● Remove the EX. muffler. (⇨4-12 )
● Remove the rear brake caliper from the rear swing arm.
● To install a new brake pad into the brake, press the
piston to return to the original position.
● Remove the hanger pin, lock plate, and brake pad.
● Verify that the pad spring is installed in specific position.
● Install a new brake pad, lock plate, and hanger pin.
● Install in the reverse order of removal.
