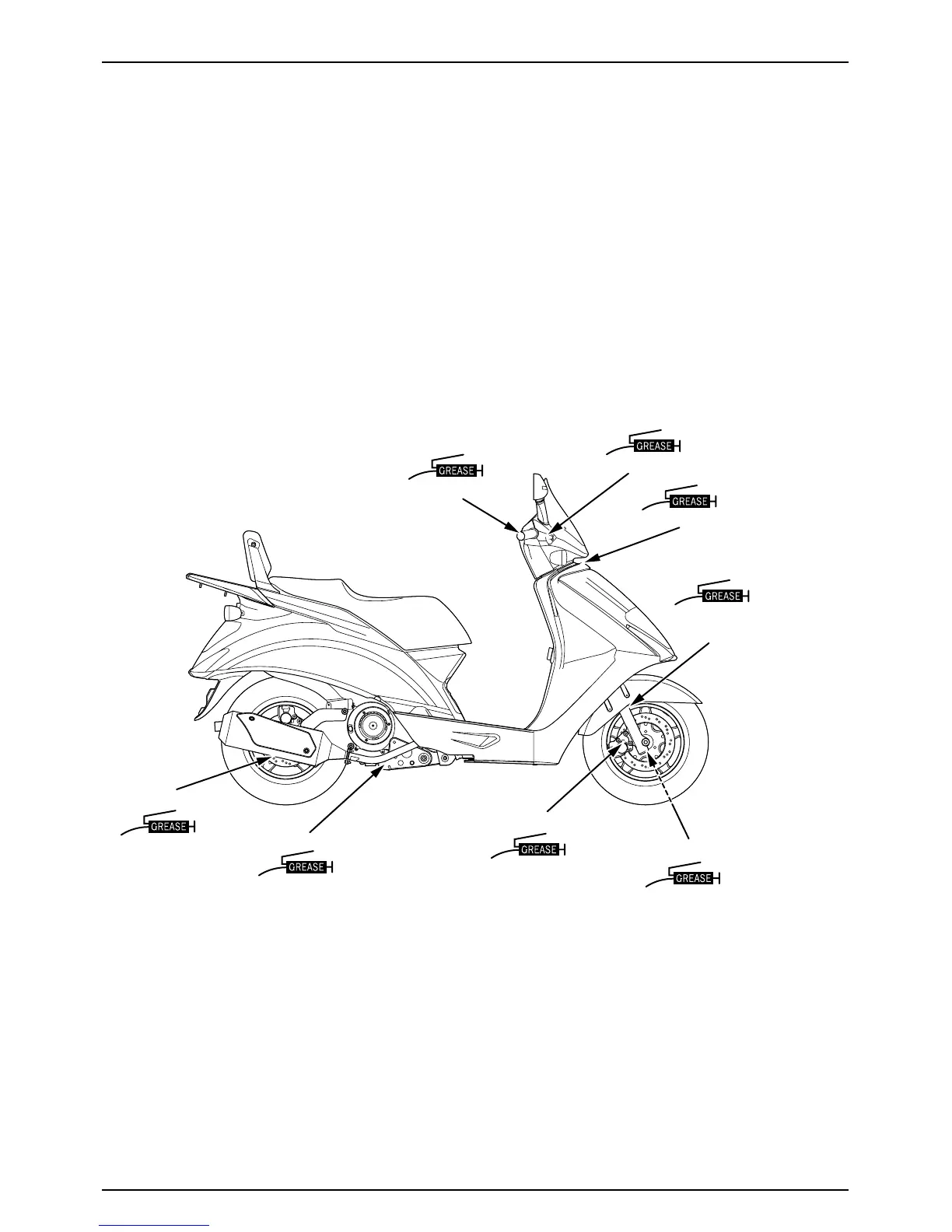

LUBRICATION POINTS

Unless specifically designated, use general grease to

lubricate the lubrication points. For sliding parts not

shown here, add oil or grease.

CONTROL CABLE LUBRICATION

Remove and clean the upper assembly of the throttle

cable, and apply oil. If the cable has expanded, replace it.

2-9

LUBRICATION

FRONTBRAKELEVERPIVOT

THROTTLEGRIP

STEERINGHEADBEARING

FRONTFORK

DUSTSEAL

WHEELBEARING/SPEEDOMETERGEAR

BRAKECALIPERBRACKET

SIDE/MAINSTANDPIVOT

WHEELBEARING
