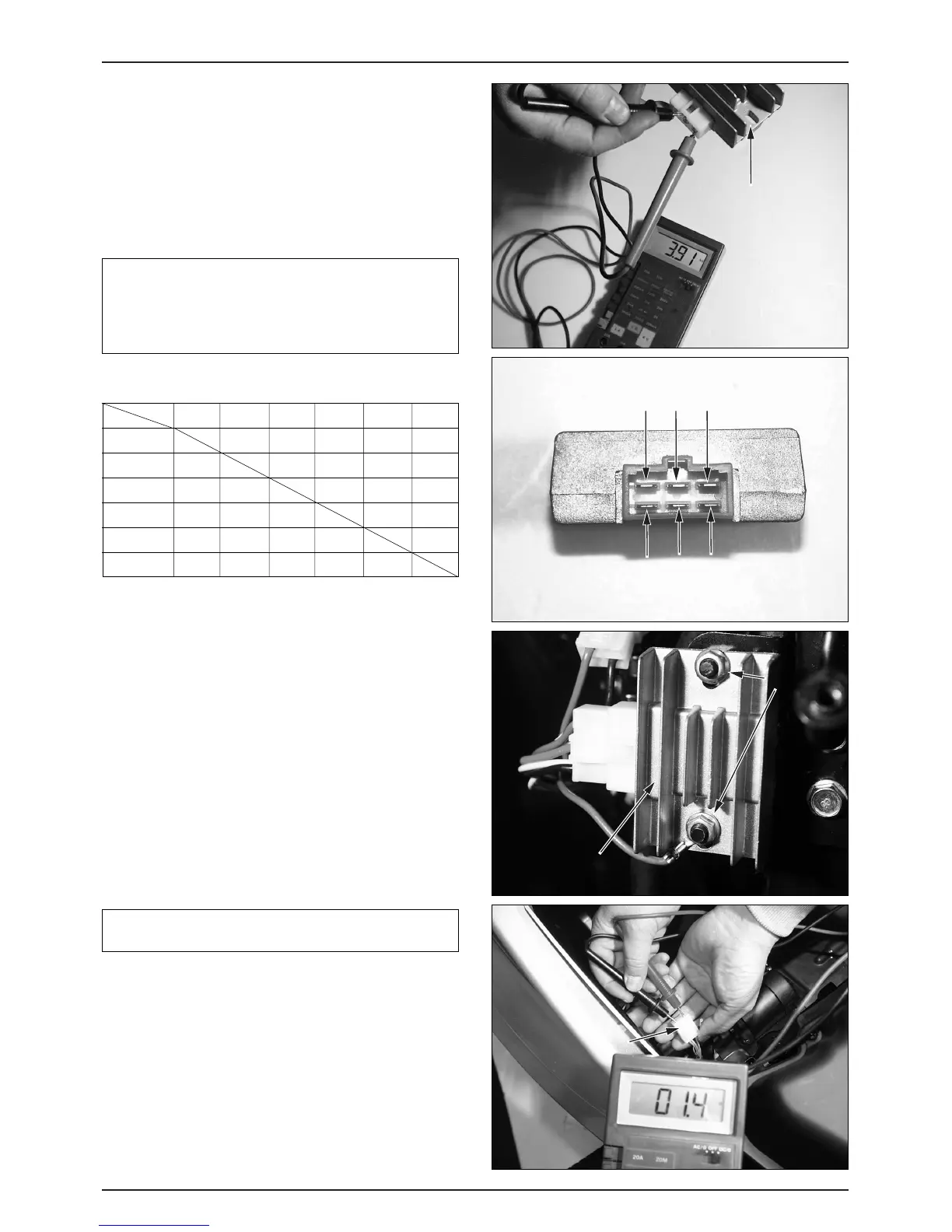

REGULATOR RECTIFIER UNIT
INSPECTION
● Provided that all inspections on the wire harness side
are normal and there are no loose connections at the
regulator rectifier coupler, inspect the regulator rectifier
unit by measuring the resistance between the terminals.
NOTE
·Resistance value will not be accurate if the probes
touch your fingers.
·Use the following recommended tester.
·Using another manufacturer’s equipment may not
allow you to obtain the specified values.
● Replace the regulator rectifier unit if the resistance
value between the terminals is abnormal.
TOOL : DIGITAL TESTER
REPLACEMENT
● Remove the front cover. (⇨4-3)
● Disconnect the regulator rectifier coupler.
● Loosen the 2 regulator rectifier setting nut securing the
horn stay, remove the regulator rectifier.
● Install in the reverse order of removal.
A.C GENERATOR CHARGING
COIL INSPECTION
NOTE
·This test is done with the starter mounted to the
engine.
● Release the seat lock with the main key.
● Remove the luggage box. (⇨4-4)
● Disconnect the coupler of the A.C generator cord.
● Measure the resistance between the yellow leads.
RESISTANCE VALUE : 1.0~1.5
Ω
(20
℃
)
● If the resistance values are much larger than the
specified value, or if there is continuity between
terminals and earth terminals, replace the stator with a
new one.
● Install in the reverse order of removal.
15-7
BATTERY/CHARGING SYSTEM
