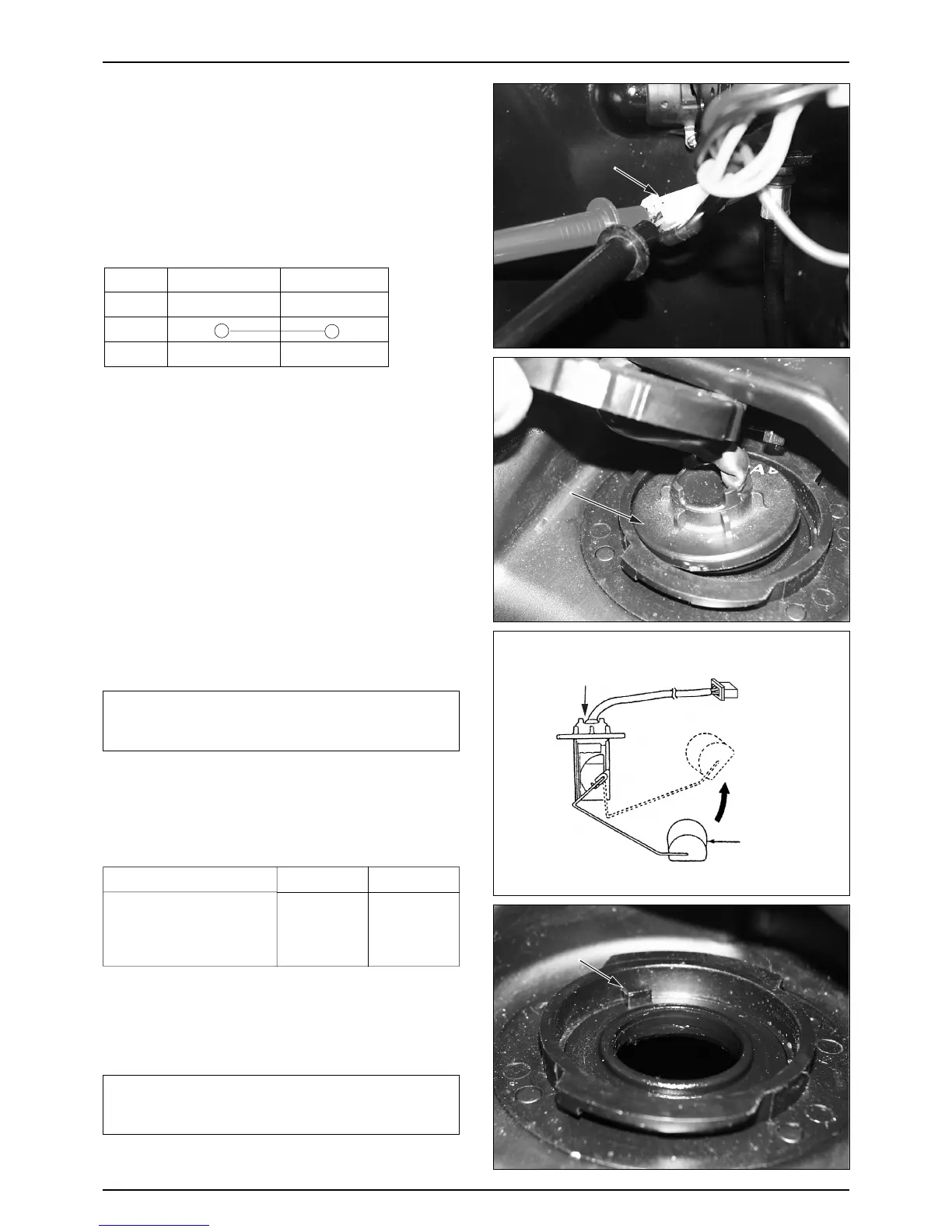

PARKING BRAKE SWITCH
INSPECTION
● Remove the front cover. (⇨4-3)
● Disconnect the parking brake switch coupler, check for
continuity between the terminals.
-When the brake lever is pulled - CONTINUITY.
-When the brake lever is released - NO CONTINUITY.
FUEL UNIT
REMOVAL
● Release the seat lock with the main key, open the seat.
● Remove the luggage box. (⇨4-4)
● Remove the rear center cover. (⇨4-5)
● Remove the fuel unit wire from the wire harness.
● Loosen the 2 seat catch component fixing screws.
● Turn the fuel unit set cap component to the left, and
remove it.
● Remove the fuel unit from the fuel tank.
NOTE
·Be careful not to damage the wire.
·Be careful not to damage the float arm.
·Check the base packing for damage.
INSPECTION
● Move the float upward and downward, and measure
the resistance between the terminals.
● When the measured value differs greatly from the
standard value, replace the fuel unit.
● Install in the reverse order of removal.
NOTE
·Install it aligning the part of the fuel unit with the
loop part of fuel tank.
·Check the fuel leakage.
