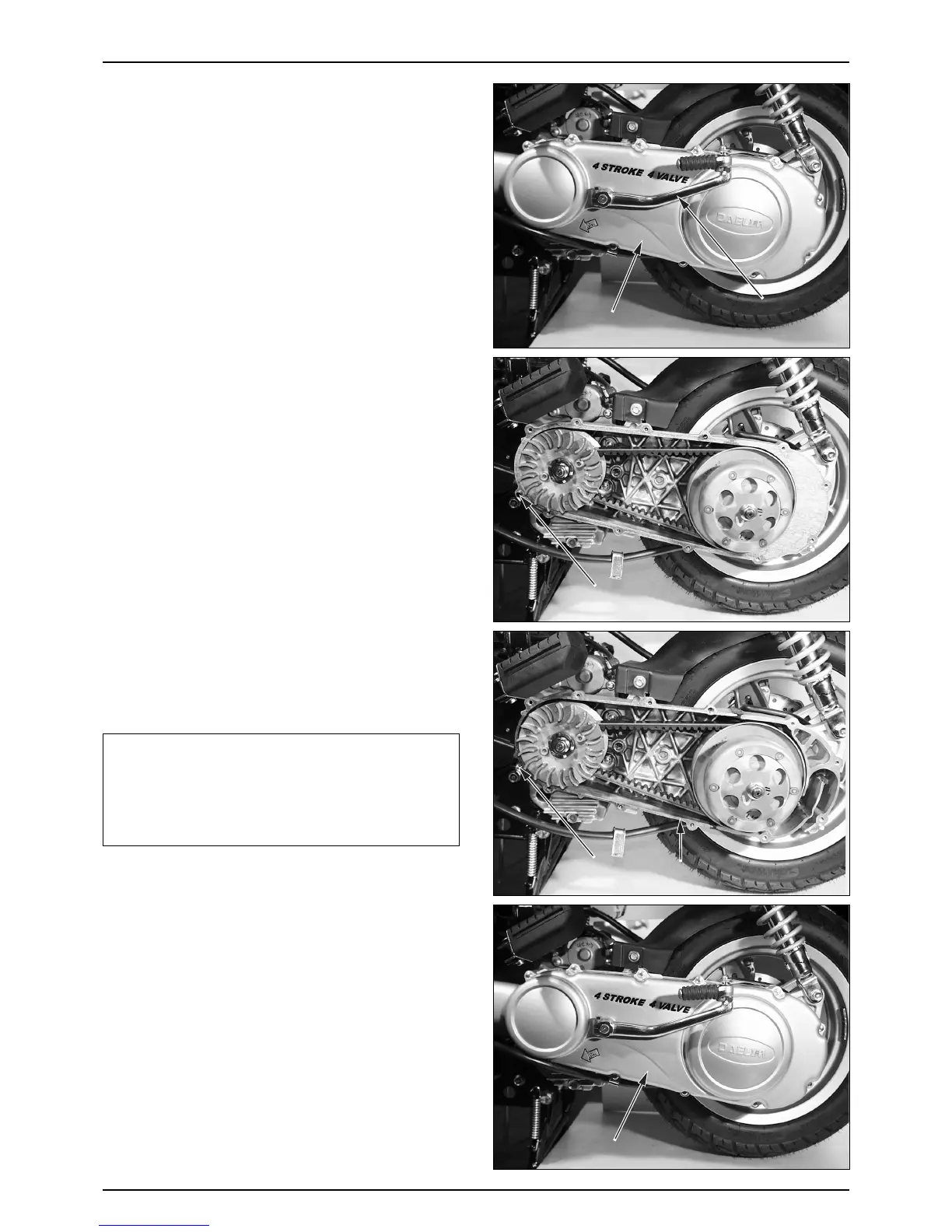

LH. CRANKCASE COVER
REMOVAL
● Remove the 12 flange bolts securing LH. crankcase.
● Remove the LH. crankcase cover.
● Remove the gasket and dowel pin.
INSTALLATION
● Install the new gasket and dowel pin after removing the
gasket of the crankcase surface.
NOTE
·Align the bolts to uniform the tightening location
before tightening then when you don’t know the bolt
length.
·Tighten the bolts diagonally with specified tightening
torque.
·Be sure to replace a new gasket and dowel pin
● Tighten the LH. crankcase cover bolts.
7-2
LH. CRANKCASE COVER/KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
