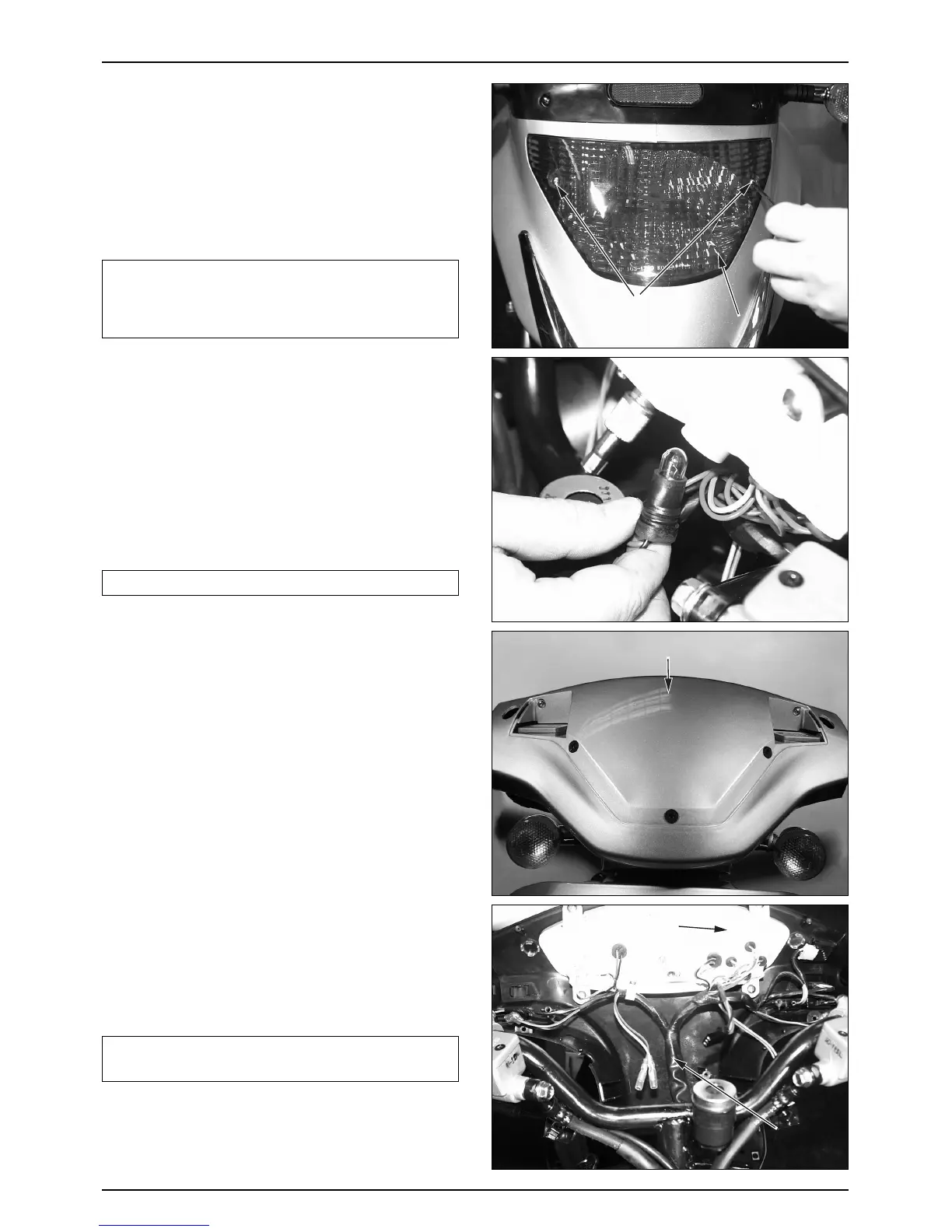

REAR COMBINATION LIGHT
BULB REPLACEMENT
● Loosen the 2 screws and remove the tail light lens.
● Remove the bulb from the tail light socket.
● Replace with a new bulb.
● Install in the reverse order of removal.
NOTE
·Pay attention not to damage the tail light lens when
removing it.
·Be sure to install the lens seal accurately when
installing the tail light lens.
METER
BULB REPLACEMENT
● Remove the back mirror.
● Remove the wind screen. (⇨4-10)
● Remove the front handle cover. (⇨4-10)
● Remove the RH./LH. front winker wiring.
● Remove the bulb from the socket, replace with a new bulb.
● Install in the reverse order of removal.
NOTE
·Check the each switch for proper operation.
SPEEDOMETER
REMOVAL
● Remove the wind screen. (⇨4-10)
● Remove the front handle cover. (⇨4-10)
● Remove the front cover. (⇨4-10)
● Remove the front top cover.
● Remove the front / rear stop switch wire.
● Remove the speedometer cable from the meter.
● Remove the winker relay and horn wire.
● Loosen the 2 rear handle cover setting screws, remove
the speedometer and rear handle cover from the
steering handle.
● Disconnect the RH./LH. switch wire.
● Loosen the 4 tapping screws securing the rear handle
cover, remove the speedometer from the rear handle cover.
● Remove the speedometer wire from the clamp, remove
the speedometer coupler connected to the wire harness.
● Remove the speedometer assembly.
● Install in the reverse order of removal.
NOTE
·Check the each switch for proper operation.
·The wire and cable must be connected accurately.
