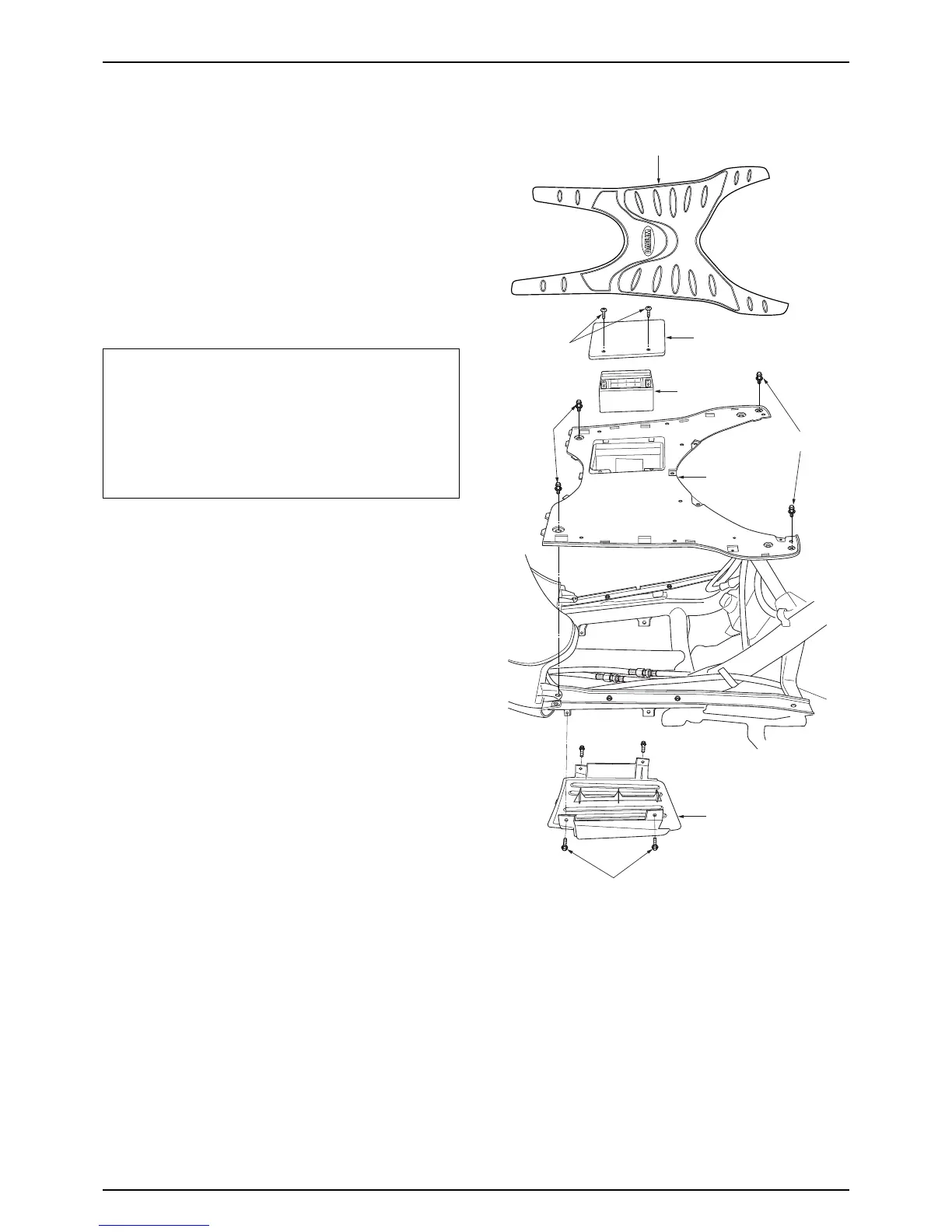

FLOOR PANEL
● Release the seat lock by turning the main switch key to
open the seat.
● Remove the following parts.
-Seat and center cover (⇨4-5)
-Rear carrier and back rest (⇨4-6)
-Floor mat
-Body cover (⇨4-6)
-RH./LH. floor side cover (⇨4-7)
● Loosen the 2 tapping screws securing the floor
panel, remove the battery cover.
● Disconnect the battery wiring to remove the battery.
CAUTION
•Be sure to remove the negative pole ⊖ side cord
first and the position pole ⊕ side cord next.
•Make sure that terminals do not contact with
other adjacent parts when handling ⊕ / ⊖
terminal.
Contact with other parts may cause spark
resulting in electrical equipment malfunction, fire
and electric shock.
● Loosen the 4 washer bolts (R/L) securing the floor
panel.
● Remove the floor panel from the connecting groove
of the inner box by lifting the rear part of the panel
slightly.
● Install in the reverse order of removal.
UNDER COVER
● Remove the floor side cover. (⇨4-7)
● Loosen the 2 upper cover setting screws (R/L) securing
the frame.
● Remove the under cover.
● Install in the reverse order of removal.
4-8
