14-11
BRAKE SYSTEM
BRAKE DISK
BRAKE DISK
DIAL GAUGE
BUTTON
COVER
PAN SCREW
PARKING
BRAKE LEVER
FLANGE
BOLT

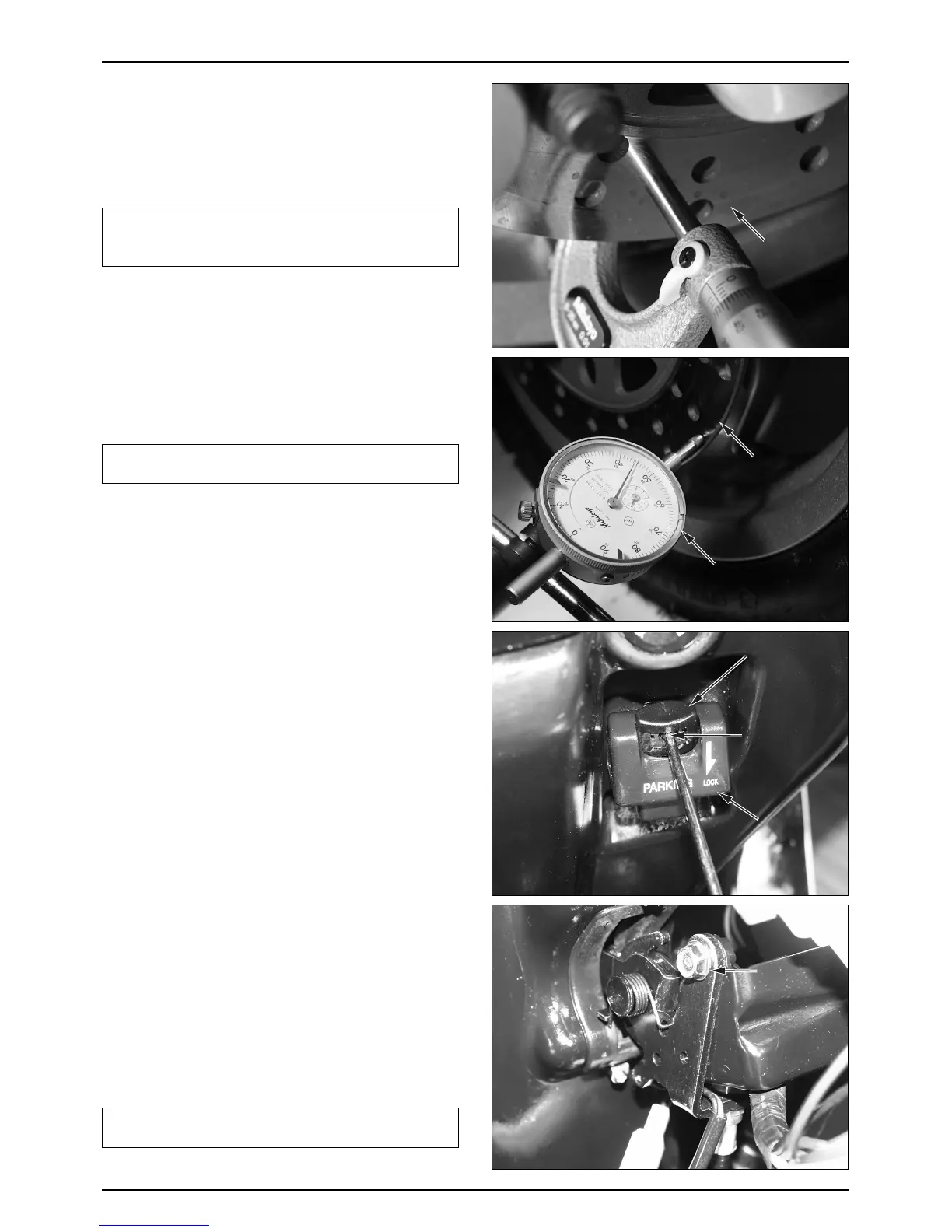

BRAKE DISK INSPECTION
● Measure the thickness of the disk.
SERVICE LIMIT : 3.0 mm
NOTE
·Measure the brake disk thickness at the several
points and replace if the smallest measurement is less
then the specified service limit.
● Check the brake disk for bent and twist.
SERVICE LIMIT : 0.02 mm
TOOL : DIAL GAUGE
NOTE
·Replace the brake disk if the disk for damage or
cracks.
PARKING BRAKE
REMOVAL
● Remove the button cover.
● Loosen the pan screw, remove the parking brake button.
● Loosen the pan screw securing the parking brake lever,
remove the parking brake grip.
● Remove the front cover. (⇨4-3 )
● Loosen the parking brake rod adjust nut B, remove the
parking brake cable.
● After releasing the lock by rotating the main key cover,
remove it.
● Loosen the RH. screw securing the inner box and front
under cover.
● Loosen the parking brake setting flange bolt, remove
the parking brake from the frame bracket.
● Disconnect the parking brake switch wiring.
● Slightly pulling the upper side of the inner box, remove
the parking brake.
● Loosen the washer screw securing the parking brake,
remove the parking brake switch.
● Loosen the brake cable setting nut, remove it from the
parking brake.
● Install in the reverse order of removal.
NOTE
·Check the parking brake free play after removing the
parking brake. (⇨3-7 )
