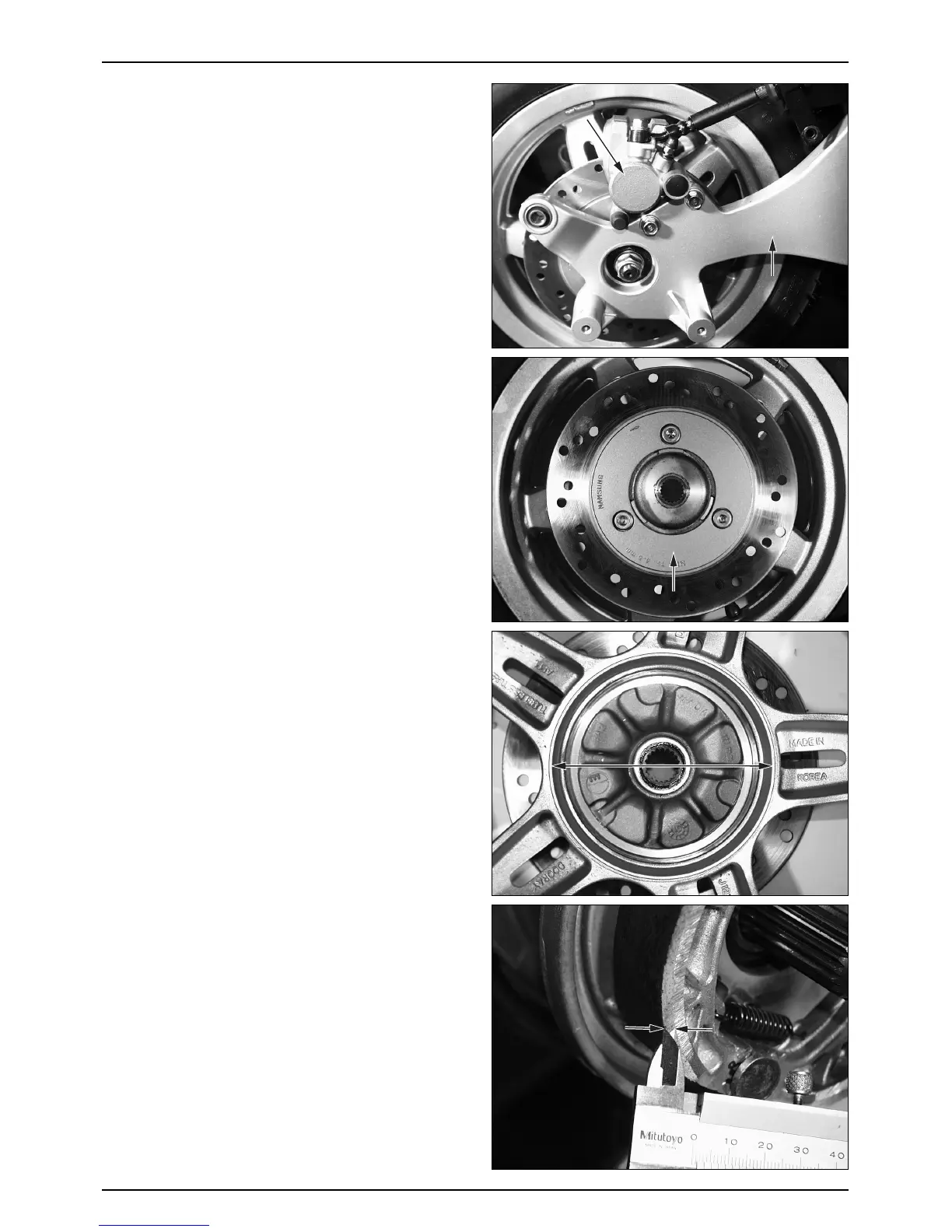

PARKING BRAKE

REMOVAL

● Remove the EX. muffler. (⇨4-12 )

● Remove the rear caliper assembly. (⇨14-6 )

● Remove the rear swing arm. (⇨13-8 )

● Remove the rear wheel. (⇨13-3 )

INSPECTION

● Measure the brake drum for inner diameter

SERVICE LIMIT : 111mm

● Measure the brake lining for thickness.

SERVICE LIMIT : 2.0mm

13-5

REAR WHEEL/BRAKE/SUSPENSION/REAR SWING ARM

REAR SWING ARM

REAR CALIPER

REAR WHEEL
