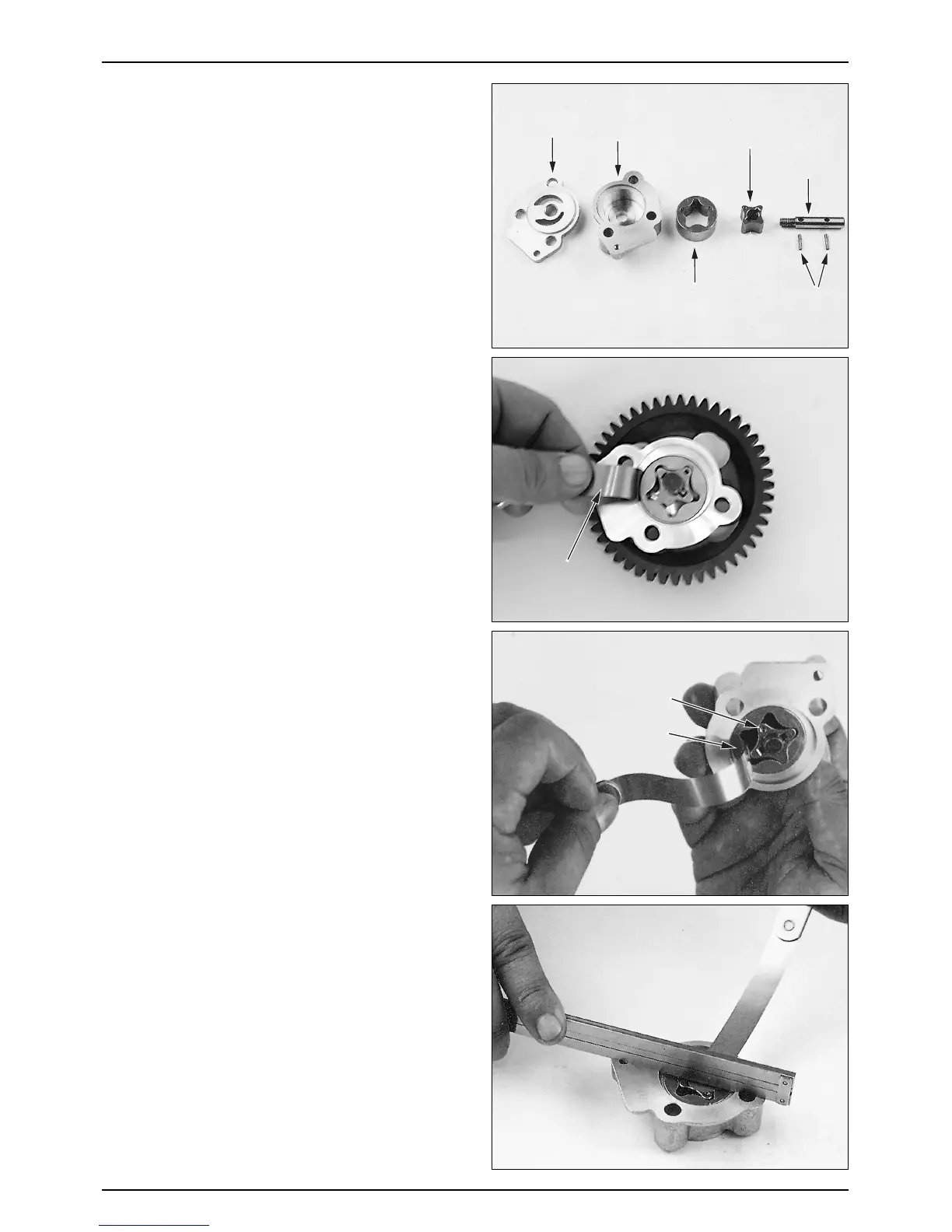

OIL PUMP DISASSEMBLY

●Loosen the screw securing the oil pump plate.

●Remove the oil pump body and the oil pump plate.

●Clean the oil pump body, inner and outer rotors with

fresh cleaning oil.

OIL PUMP INSPECTION

●Assemble the inner and outer rotors to the oil pump

body.

●Measure the pump body clearance.

SERVICE LIMIT : 0.23mm

TOOL : FEELER GAUGE

●Measure the rotor tip clearance.

SERVICE LIMIT : 0.18mm

●Measure the pump side clearance

SERVICE LIMIT : 0.12mm

2-5

LUBRICATION

PUMP PLATE

PUMP BODY

INNER ROTOR

PUMP SHAFT

OUTER ROTOR

ROLLER2.5x11.8

FEELER GAUGE

OUTER ROTOR

INNER ROTOR
