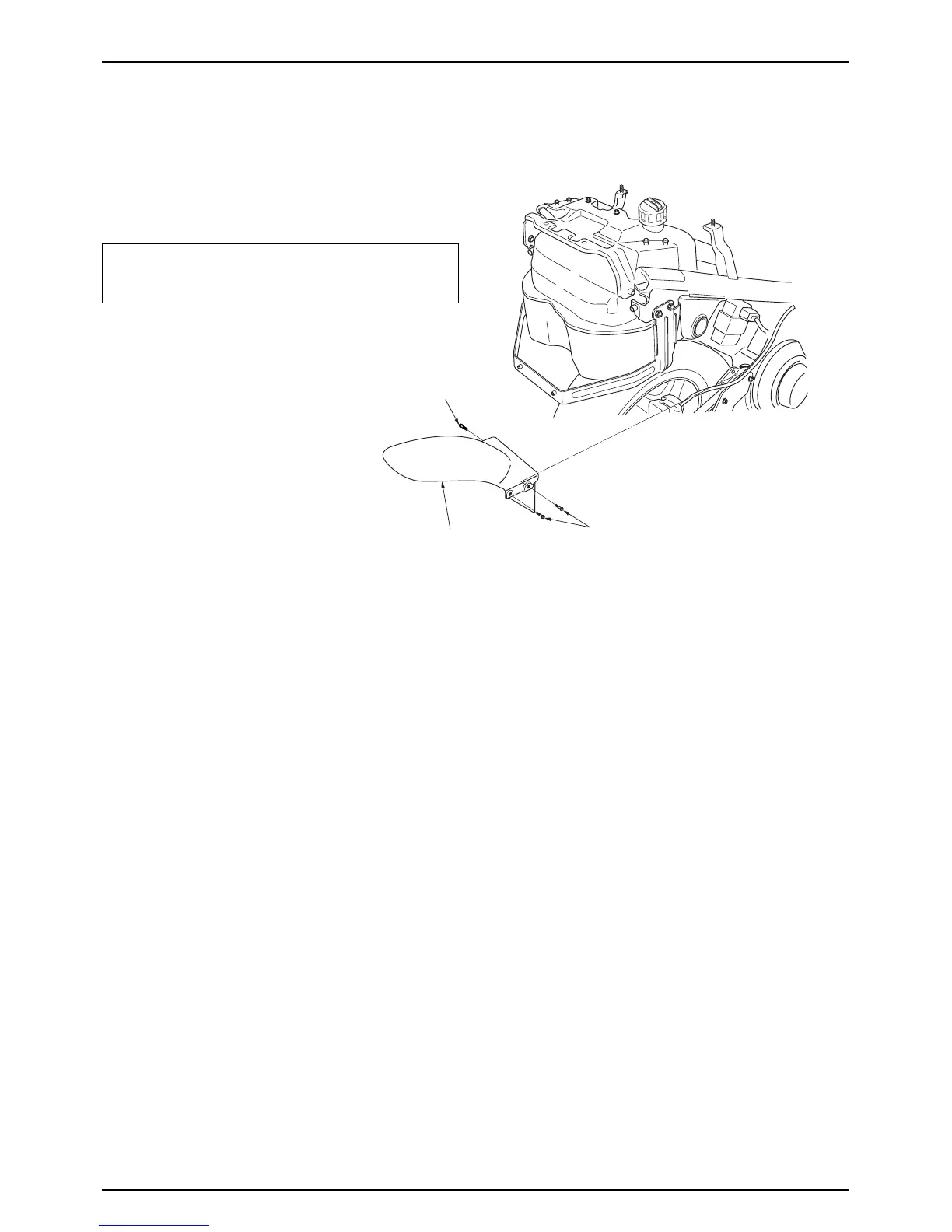

REAR WHEEL MUD GUARD

● Loosen the washer bolt securing the LH. crankcase.

● Loosen the washer bolt securing the RH. crankcase.

● Loosen the washer bolt securing EX. muffler bracket.

● Remove the rear wheel mud guard.

● Install in the reverse order of removal.

NOTE

•Never perform the maintenance of the muffler right

after stopping the vehicle because the muffler is

extremely hot.

4-11

WASHERBOLT

REARWHEELMUDGUARD

EXTERNAL PARTS
