DAELIM HISTORY 125 User Manual

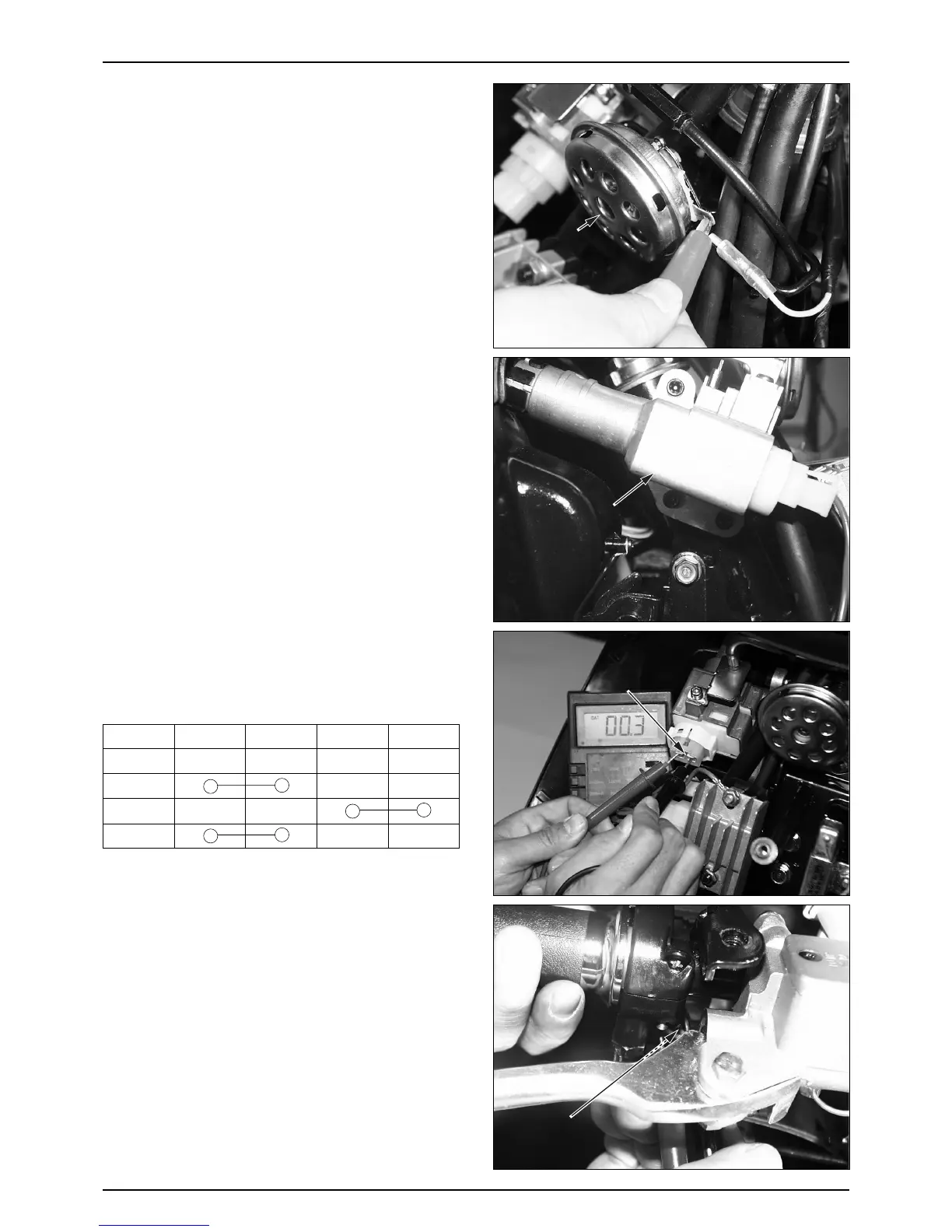

HORN INSPECTION
● Remove the front cover. (⇨4-3)
● Remove the horn wiring, and connect a fully charged
12V battery. Check the sound quality for any
abnormalities.
● Install in the reverse order of removal.
MAIN SWITCH
REMOVAL
● Remove the front cover. (⇨4-3)
● Disconnect the main switch coupler.
● Release the lock, remove the main key cover.
● Remove the seat lock cable.
● Loosen the 3 screws and remove the main switch.
● Install in the reverse order of removal.
INSPECTION
● Check for continuity between the terminals
● There should be continuity between the O---O positions
on the continuity chart.
HANDLE BAR SWITCH
INSPECTION
● Remove the back mirror.
● Remove the wind screen. (⇨4-10)
● Remove the front handle cover. (⇨4-10)
● Disconnect the RH./LH. winker wire.
● Disconnect the handle bar switch connector and
coupler, check for continuity between the terminals.
● There should be continuity between the O---O positions
on the continuity chart.
18-4
HORN
MAIN SWITCH
MAIN SWITCH TERMINAL
STARTER SWITCH
LIGHTS/METER/SWITCHES
IG E BAT BATO
BLACK/WHITE GREEN RED BLACK
COLOR
TERMINAL
OFF
ON
LOCK
