Dell N3000 Series User Manual

Managing the MAC Address Table 1019
Global Address Table
The Global Address Table page contains fields for querying information in
the dynamic address table, including the interface type, MAC addresses,
VLAN, and table sorting key. Packets forwarded to an address stored in the
address table are forwarded directly to those ports.
The Global Address Table also contains information about the aging time
before a dynamic MAC address is removed from the table.
To display the Global Address Table, click Switching
→ Address Tables →
Global Address Table in the navigation panel.

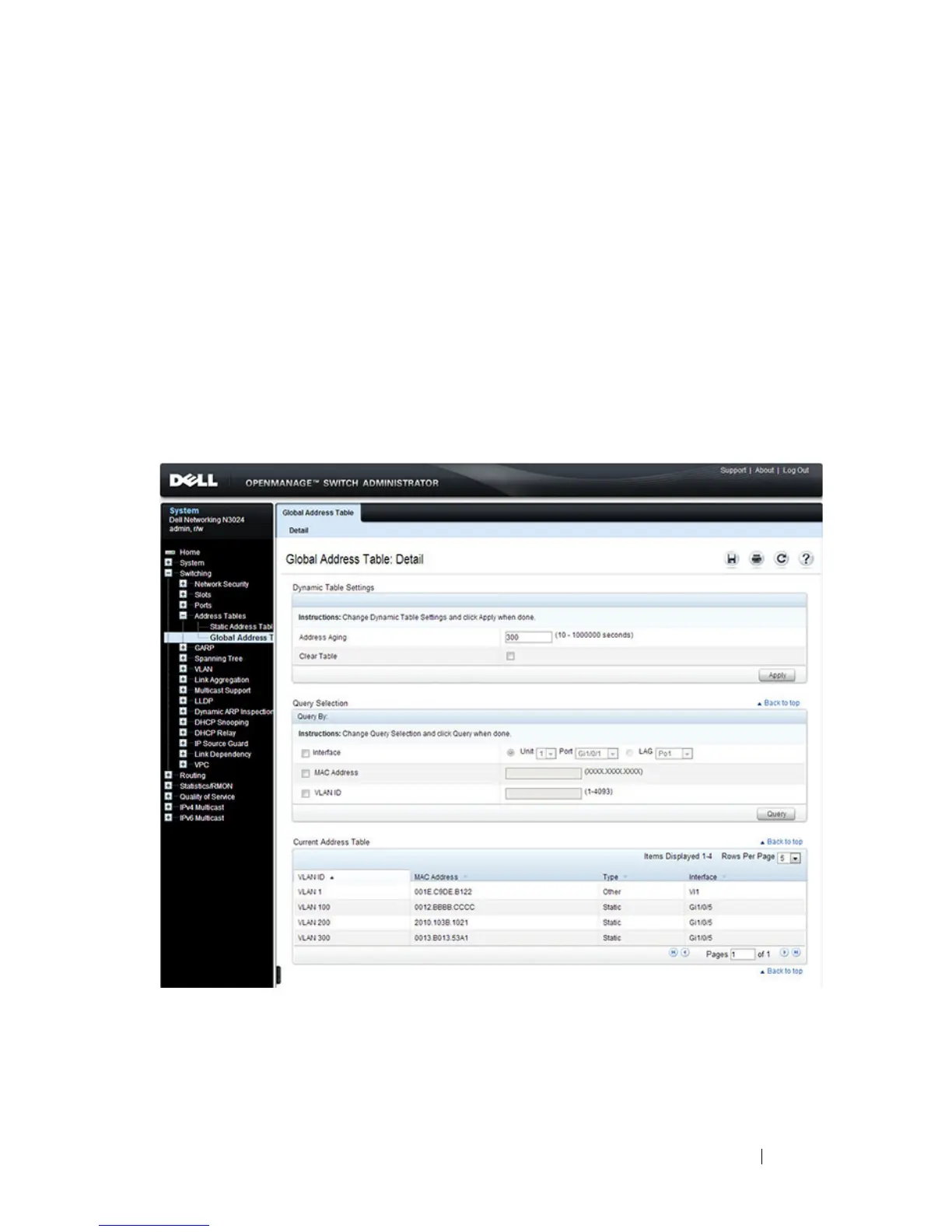

Figure 30-3. Global Address Table

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
