Configuring Port Characteristics 495

Port Green Ethernet LPI History

Use the Green Ethernet LPI History page to view data about the amount of

time the switch has spent in low-power idle (LPI) mode.

To display the Green Ethernet LPI History page, click System

→

Green

Ethernet

→

Green Ethernet LPI History in the navigation panel.

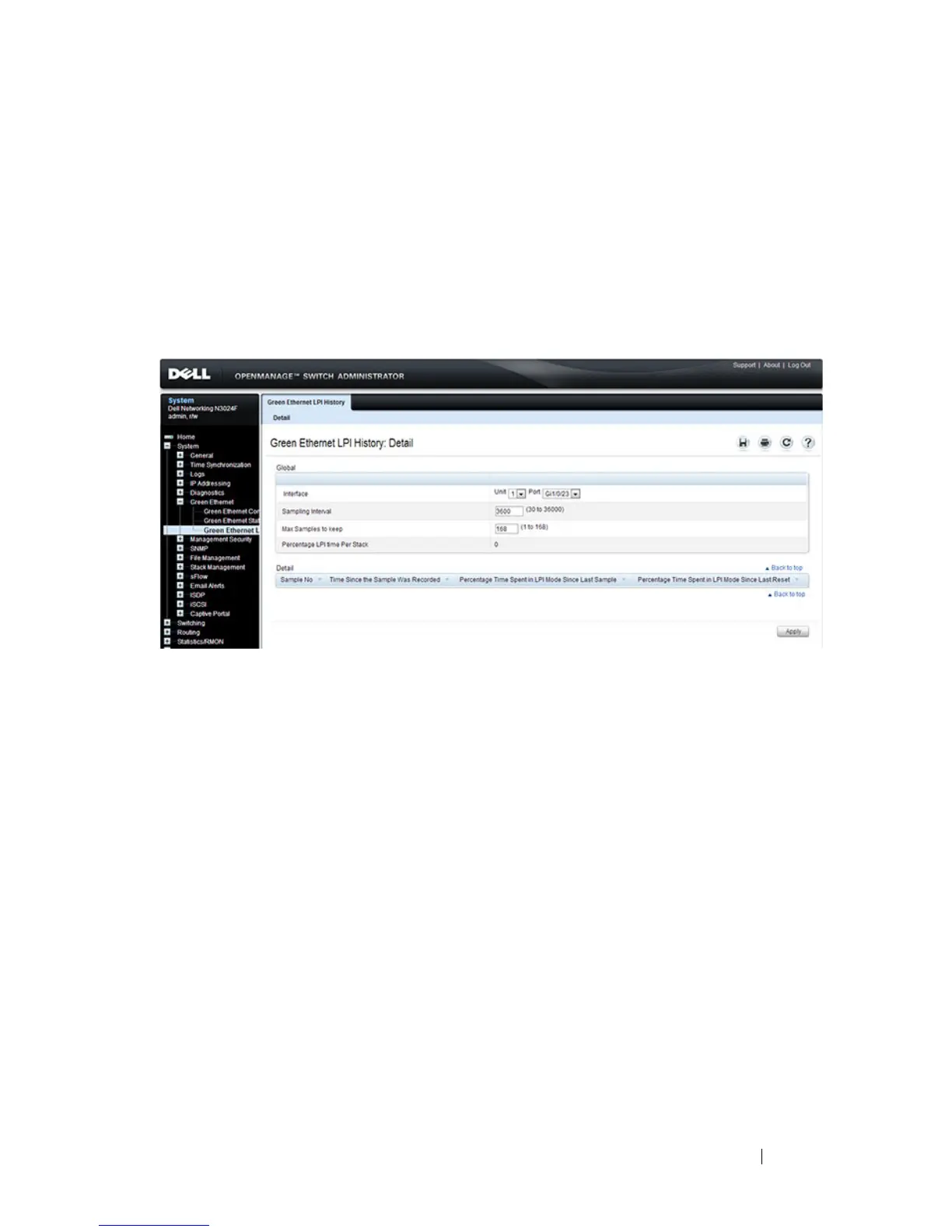

Figure 18-11. Green Ethernet LPI History
