Dell N3000 Series User Manual

1376 Managing IPv4 and IPv6 Multicast
received on the selected interface in order for data to be displayed here. To
access this page, click IPv6 Multicast
→ MLD → Routing Interface →
Cache Information in the navigation panel.

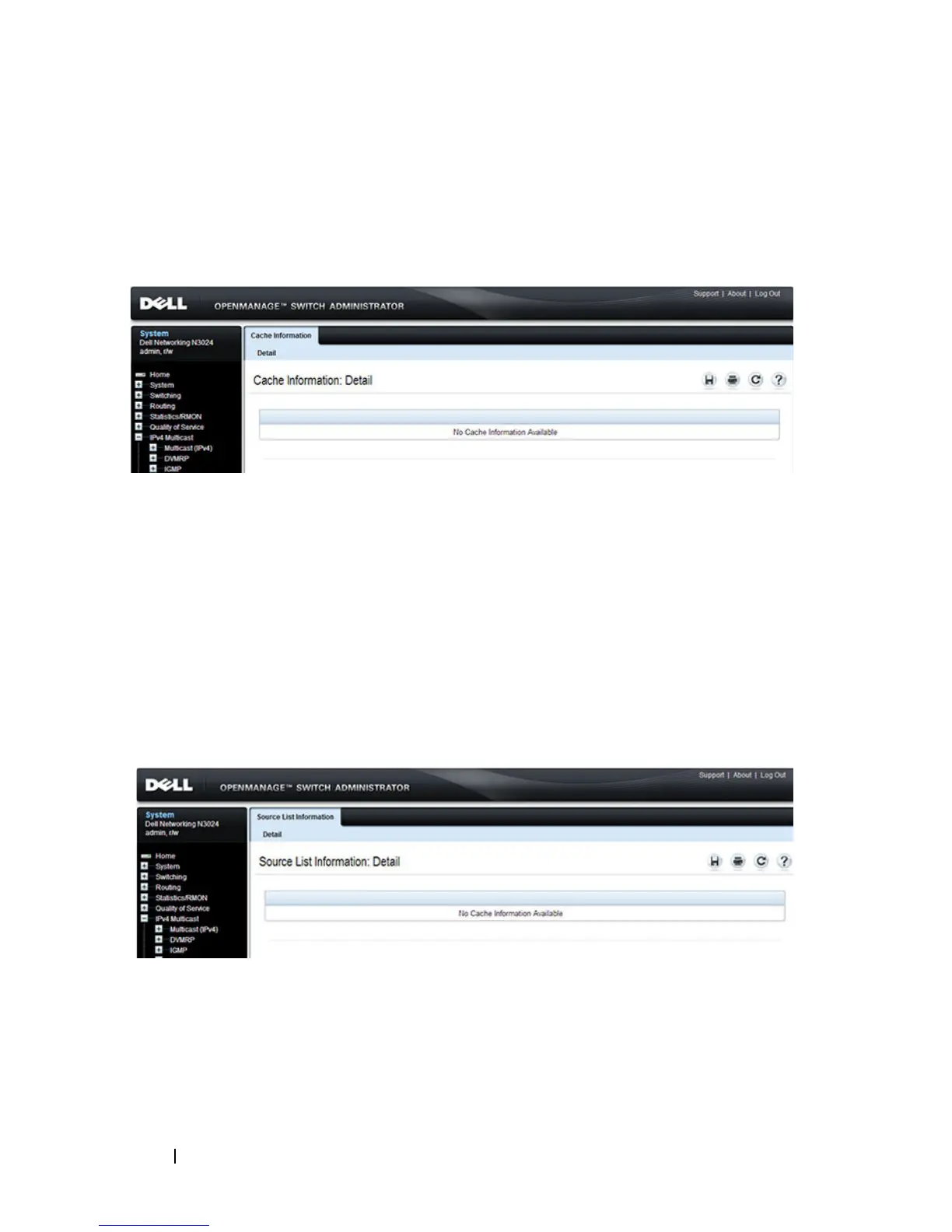

Figure 43-29. MLD Routing Interface Cache Information
MLD Routing Interface Source List Information
The Interface Source List Information page displays detailed membership
information for an interface. You must configure at least one MLD VLAN
routing interface to access this page. Also, group membership reports must
have been received on the selected interface in order for data to be displayed
here. To access this page, click IPv6 Multicast
→ MLD → Routing Interface
→ Source List Information in the navigation panel.
Figure 43-30. MLD Routing Interface Source List Information

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
