Dell N3000 Series User Manual

Snooping and Inspecting Traffic 901
DAI ACL Configuration
Use the DAI ACL Configuration page to add or remove ARP ACLs.
To display the DAI ACL Configuration page, click Switching
→ Dynamic
ARP Inspection
→ ACL Configuration in the navigation panel.

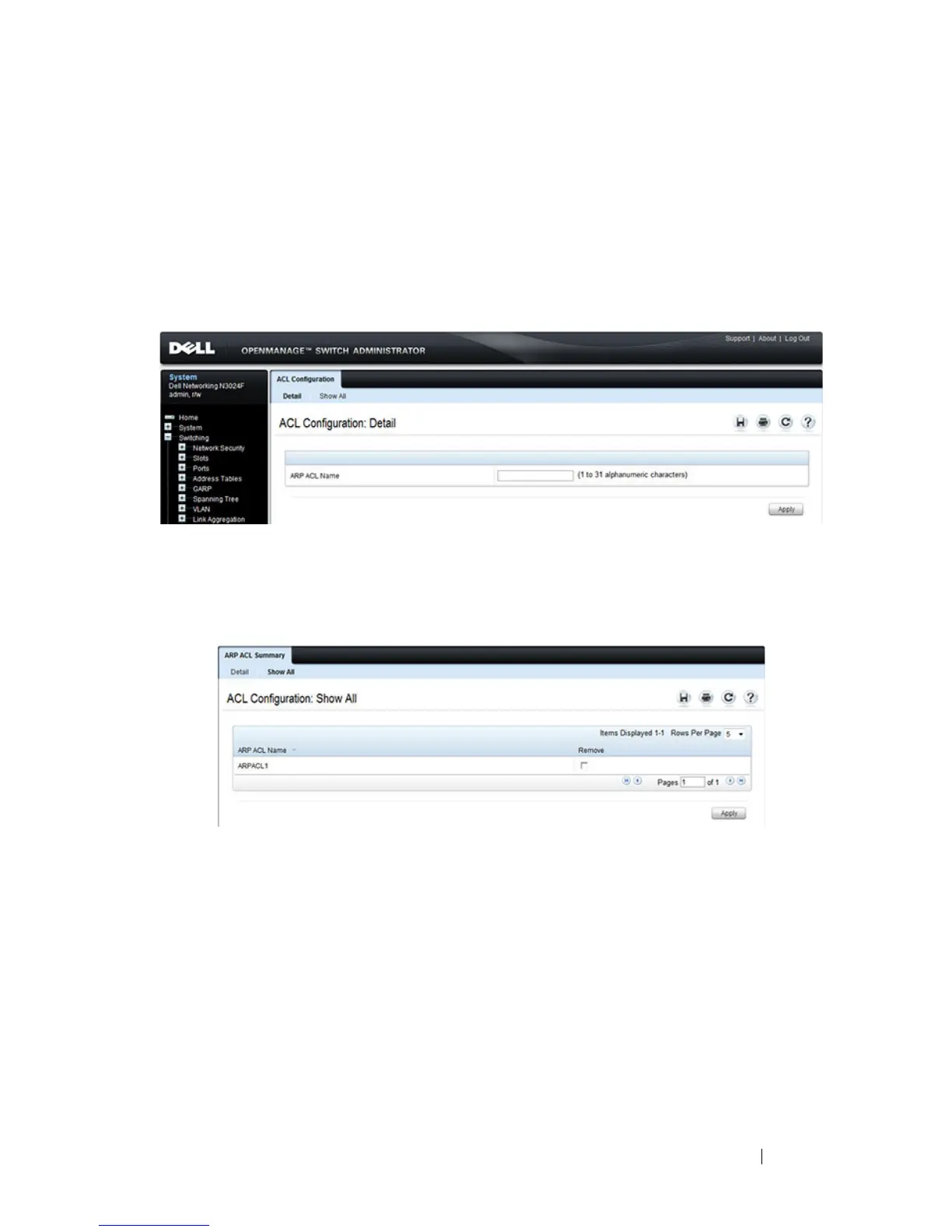

Figure 27-20. Dynamic ARP Inspection ACL Configuration
To view a summary of the ARP ACLs that have been created, click Show All.
Figure 27-21. Dynamic ARP Inspection ACL Summary
To remove an ARP ACL, select the Remove checkbox associated with the
ACL and click Apply.
DAI ACL Rule Configuration
Use the DAI ARP ACL Rule Configuration page to add or remove DAI ARP
ACL Rules.
To display the DAI ARP ACL Rule Configuration page, click Switching
→
Dynamic ARP Inspection
→ ACL Rule Configuration in the navigation
panel.
