Dell N3000 Series User Manual

Configuring RIP 1207
RIP Route Redistribution Configuration
Use the Route Redistribution Configuration page to configure the RIP
Route Redistribution parameters. The allowable values for each fields are
displayed next to the field. If any invalid values are entered, an alert message
is displayed with the list of all the valid values.
To display the page, click Routing
→ RIP → Route Redistribution
Configuration in the navigation panel.

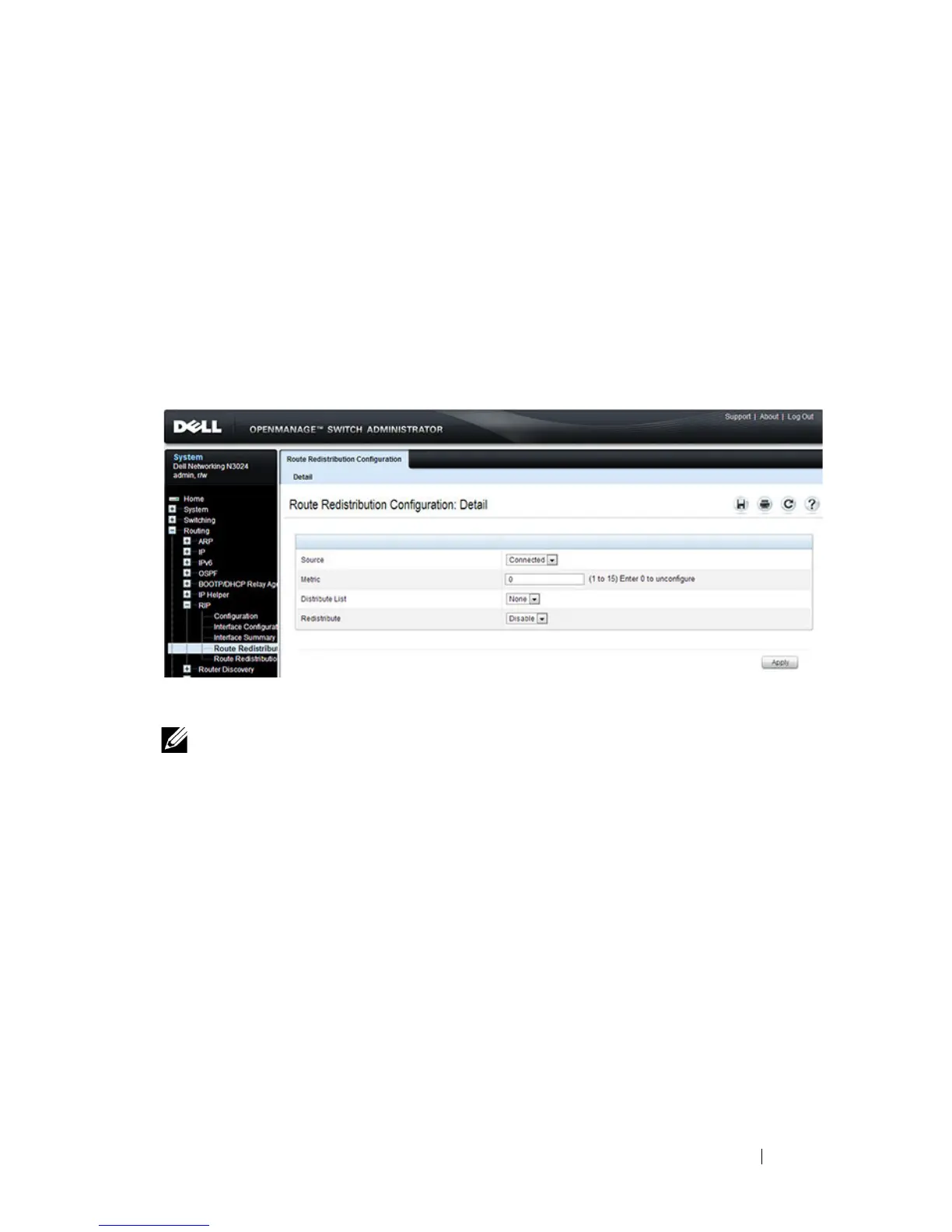

Figure 36-4. RIP Route Redistribution Configuration
NOTE: Static reject routes are not redistributed by RIP. For a static reject route,
the next hop interface value is Null0. Packets to the network address specified in
static reject routes are intentionally dropped.
