Dell N3000 Series User Manual

Configuring Differentiated Services 1289
Class Configuration
Use the DiffServ Class Configuration page to add a new DiffServ class name,
or to rename or delete an existing class.
To display the
page, click Quality of Service → Differentiated Services →
Class Configuration in the navigation panel.

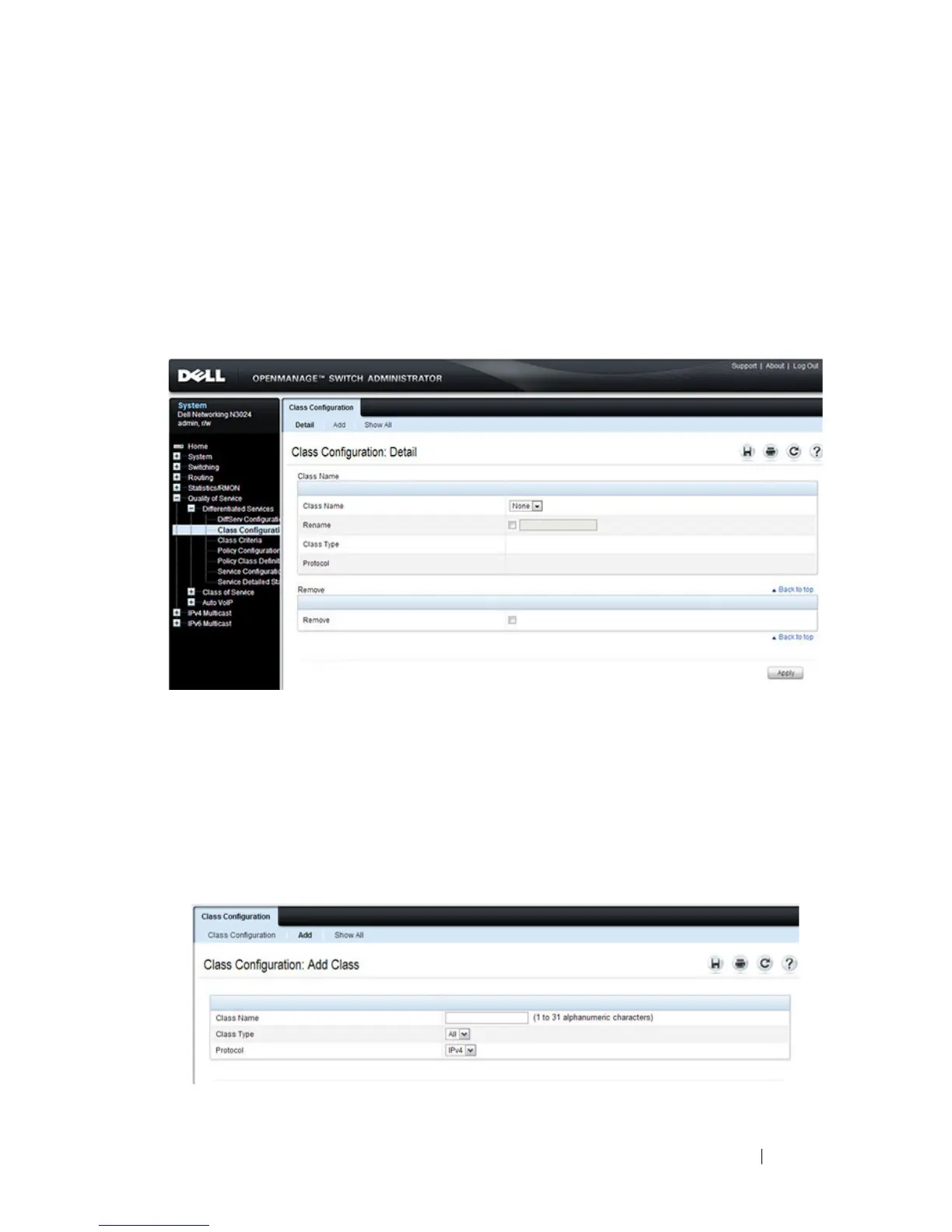

Figure 40-2. DiffServ Class Configuration
Adding a DiffServ Class
To add a DiffServ class:
1
From the DiffServ Class Configuration page, click Add to display the
Add Class page.
Figure 40-3. Add DiffServ Class

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
