Dell N3000 Series User Manual

Configuring DHCP Server and Relay Settings 1045
Deleting Excluded Addresses
To remove an excluded address:
1
Open the Network Properties page.
2 Click Delete Excluded Addresses to display the Delete Excluded
Addresses
page.
3 Select the check box next to the address or address range to delete.

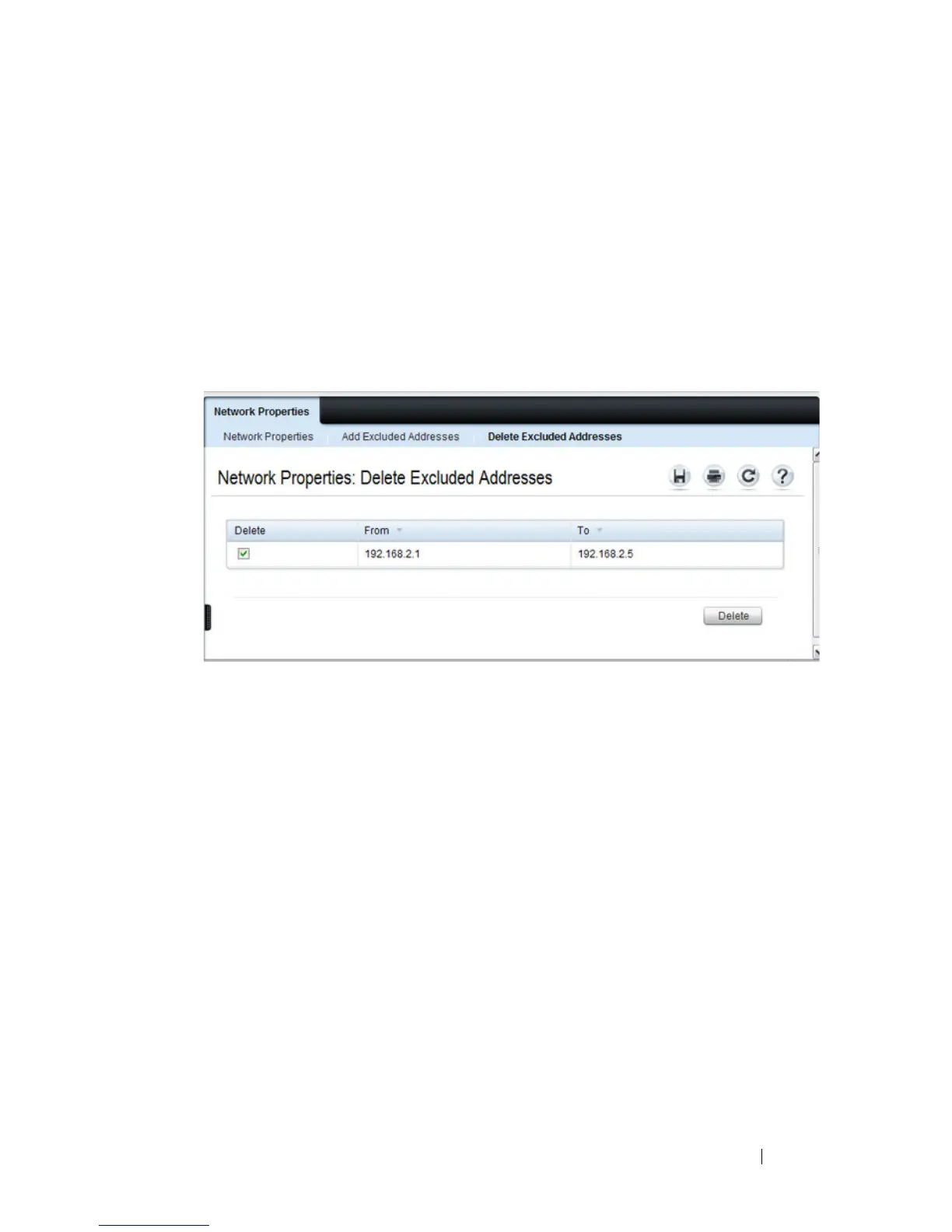

Figure 32-4. Delete Excluded Addresses
4 Click Apply .
Address Pool
Use the Address Pool page to create the pools of IP addresses and other
network information that can be assigned by the server.
To display the Address Pool page, click Routing
→ IP → DHCP Server →
Address Pool in the navigation panel.

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
