Dell N3000 Series User Manual

866 Configuring Connectivity Fault Management

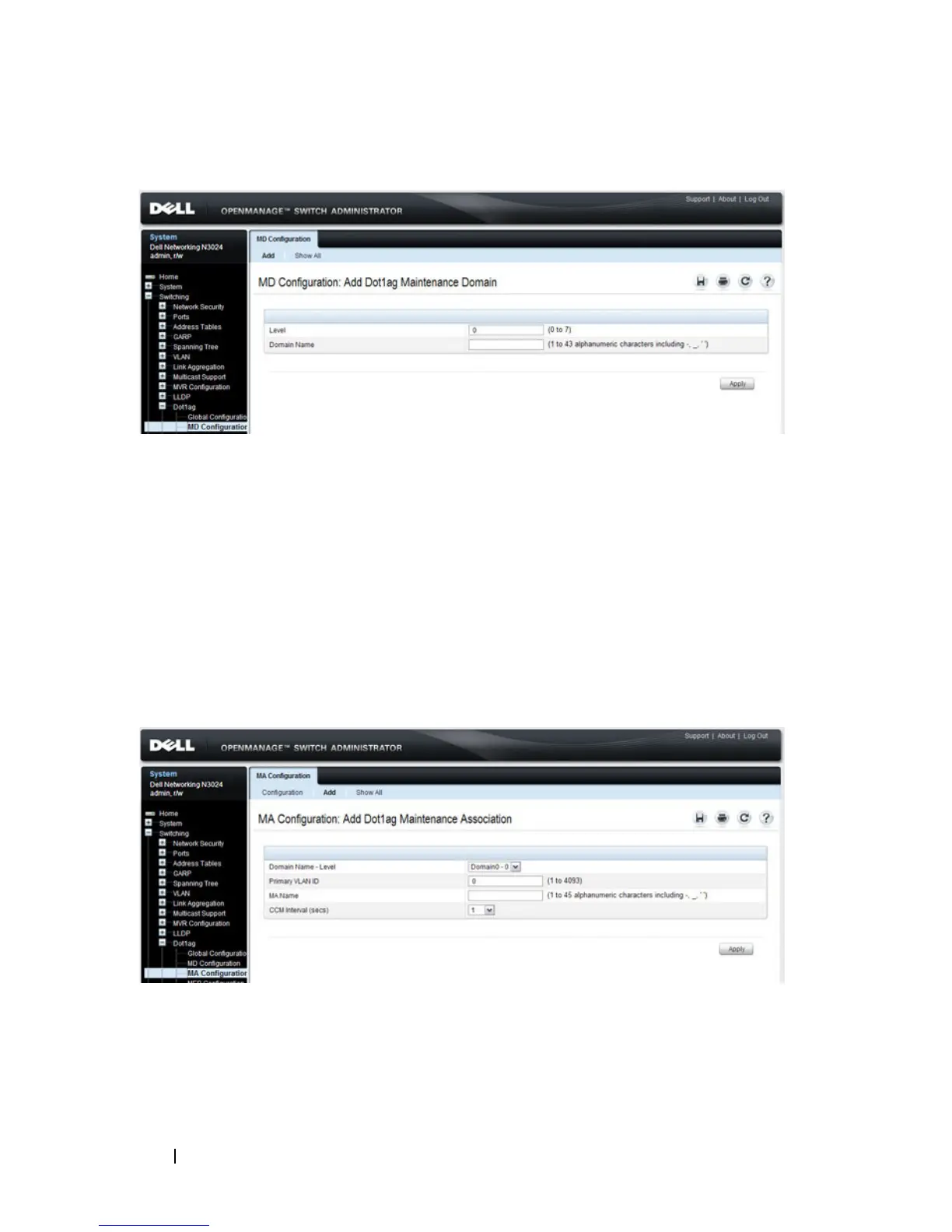

Figure 26-5. Dot1ag MD Configuration
Dot1ag MA Configuration
Use the MA Configuration page to associate a maintenance domain level
with one or more VLAN ID, provide a name for each maintenance association
(MA), and to set the interval between continuity check messages sent by
MEPs for the MA.
To display the
page, click Switching → Dot1ag → MA Configuration in the
tree view.
Figure 26-6. Dot1ag MA Configuration
