Dell N3000 Series User Manual

Configuring Authentication, Authorization, and Accounting 225

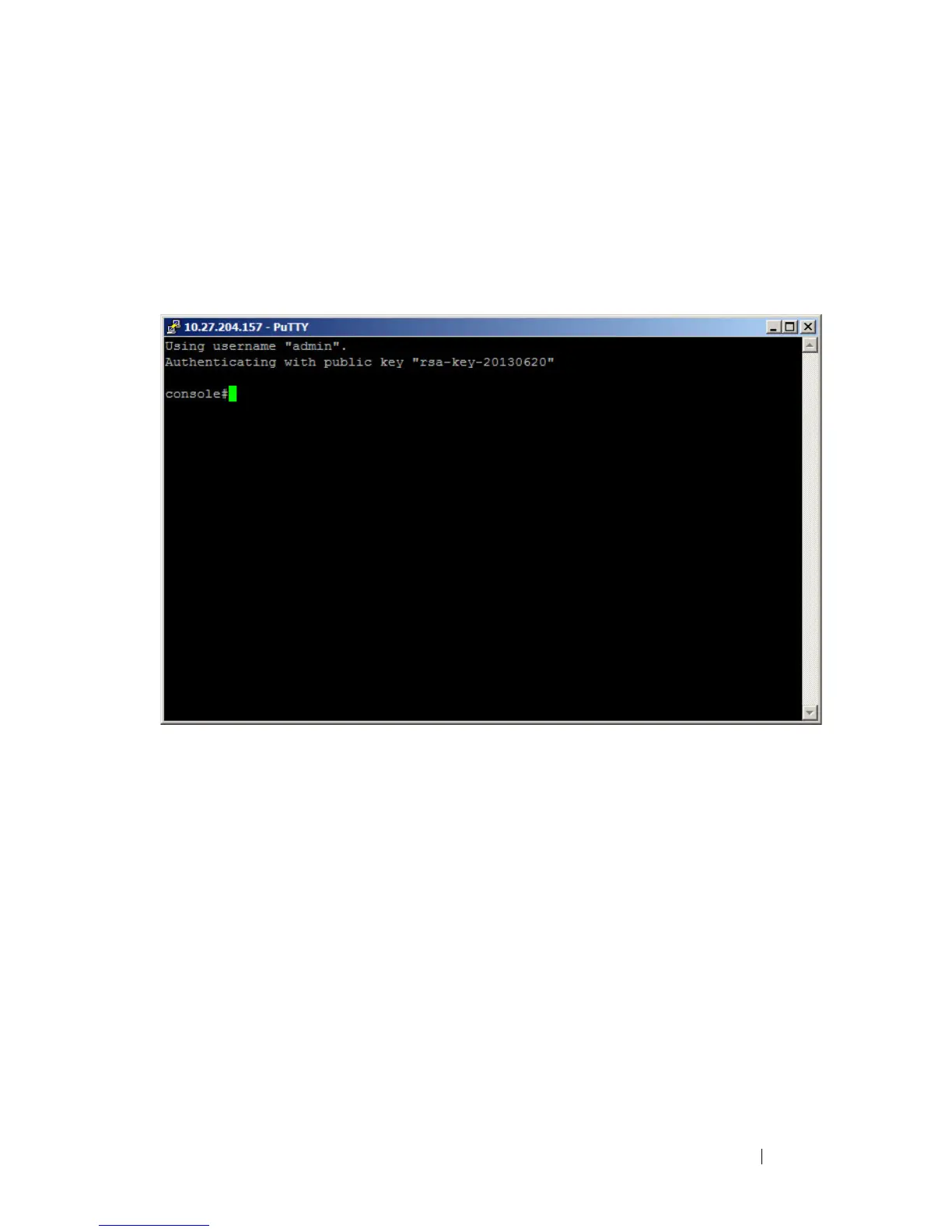

Authenticating Without a Public Key
When authenticating without the public key, the switch prompts for the user
name and password. This is a SSH function, not a switch function. If the user
knows the administrator login and password, then they are able to
authenticate in this manner.
RADIUS Authentication Example
Use the following configuration to require RADIUS authentication to login
over a Telnet connection:
aaa authentication login “rad” radius
aaa authentication enable “raden” radius
radius-server host 1.2.3.4
key “secret”
exit
line telnet
login authentication rad
enable authentication raden
exit
The following describes each line in the above configuration:

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
