Dell N3000 Series User Manual

Monitoring Switch Traffic 437
Port Mirroring
Use the Port Mirroring page to create a mirroring session in which all traffic
that is sent or received (or both) on one or more source ports is mirrored to a
destination port.
To display the Port Mirroring page, click Switching
→ Ports → Traffic
Mirroring
→ Port Mirroring in the navigation panel.

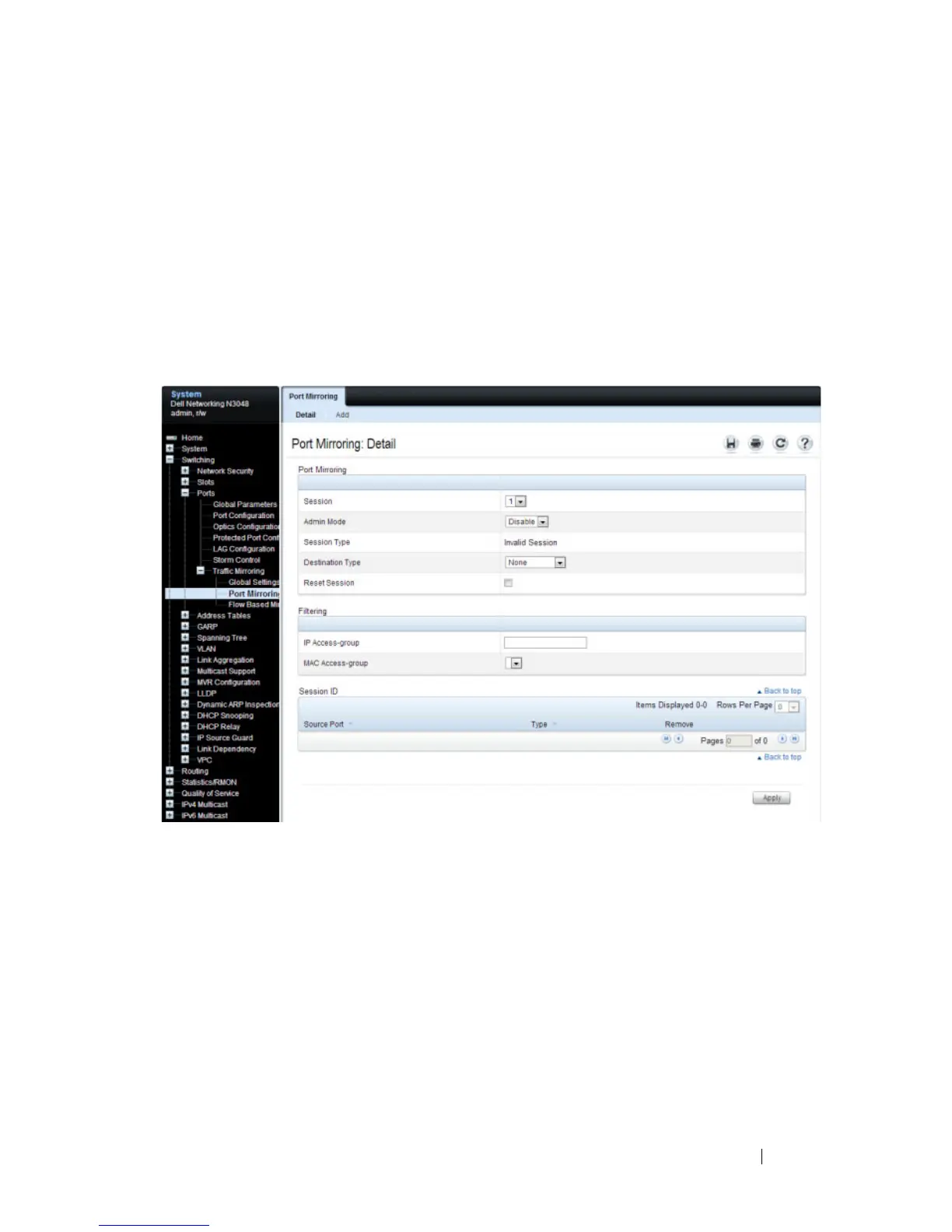

Figure 16-24. Port Mirroring
Configuring a Port Mirror Session
To configure port mirroring:
1
Open the Port Mirroring page.
2 Click Add .
The
Add Source Port page displays.
3 Select the port to be mirrored.
4 Select the traffic to be mirrored.

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
