Port and System LEDs
The front panel contains light emitting diodes (LEDs) that indicate the
status of port links, power supplies, fans, stacking, and the overall system
status. See "N2000 LED Definitions" on page 97 for more information.
Stack Master LED and Stack Number Display
When a switch within a stack is the master unit, the stack master LED, which
is labeled M, is solid green. If the M LED is off, the stack member is not the
master unit. The Stack No. panel displays the unit number for the stack
member. If a switch is not part of a stack (in other words, it is a stack of one
switch), the M LED is illuminated, and the unit number is displayed.
N2000 Series Back Panel
The following images show the back panels of the N2000 switches.

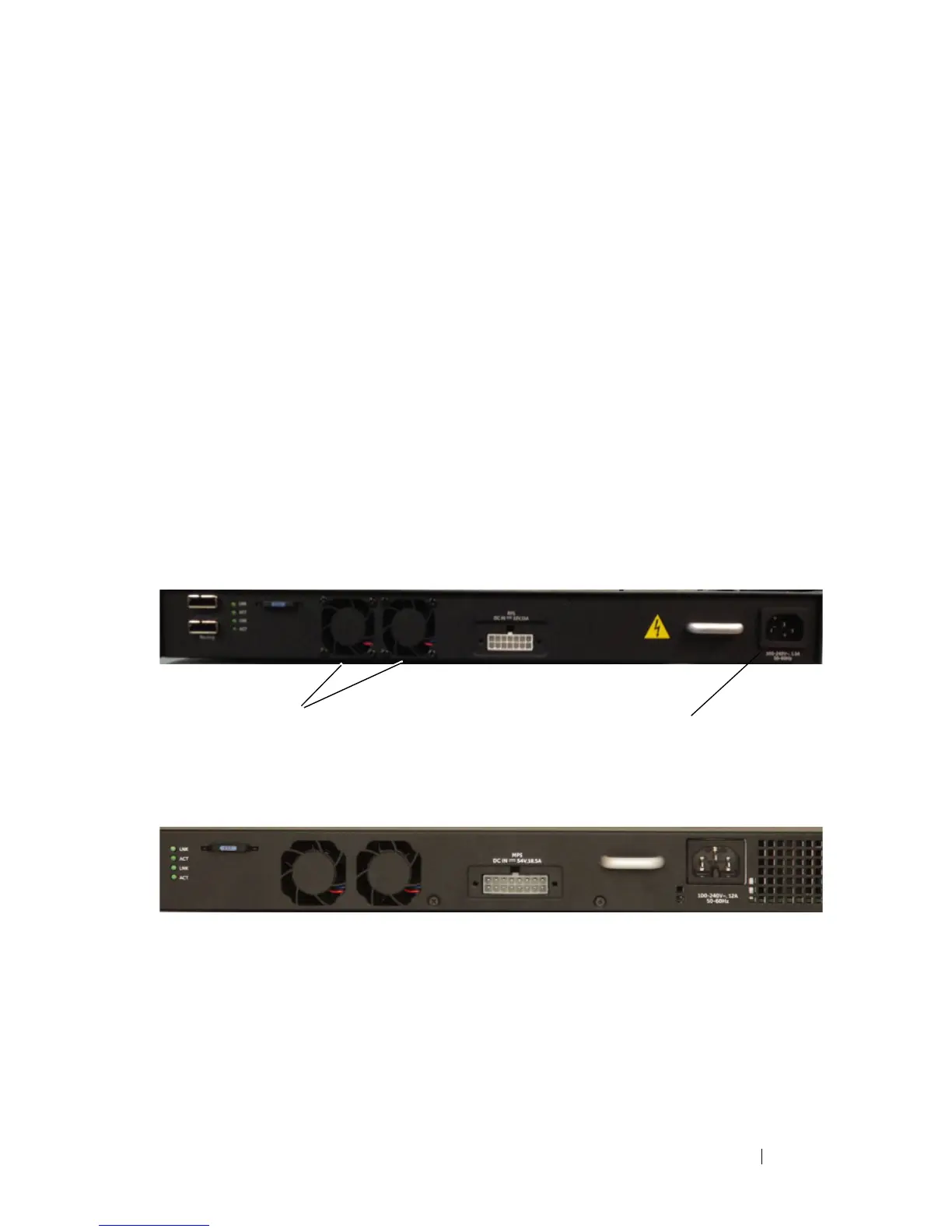

Figure 3-4. N2000 Back Panel
Figure 3-5. N2024P/N2048P Back Panel
The term mini-SAS refers to the stacking port cable connections shown in
Figure 3-6. See "Managing a Switch Stack" on page 171 for information on
using the mini-SAS ports to connect switches.
Fan Vents
AC Power Receptacle
