872 Configuring Connectivity Fault Management

Dot1ag Statistics

Use the

Statistics page to view Dot1ag information for a selected domain and

VLAN ID.

To display the

page, click Switching

→

Dot1ag

→

Statistics in the tree view.

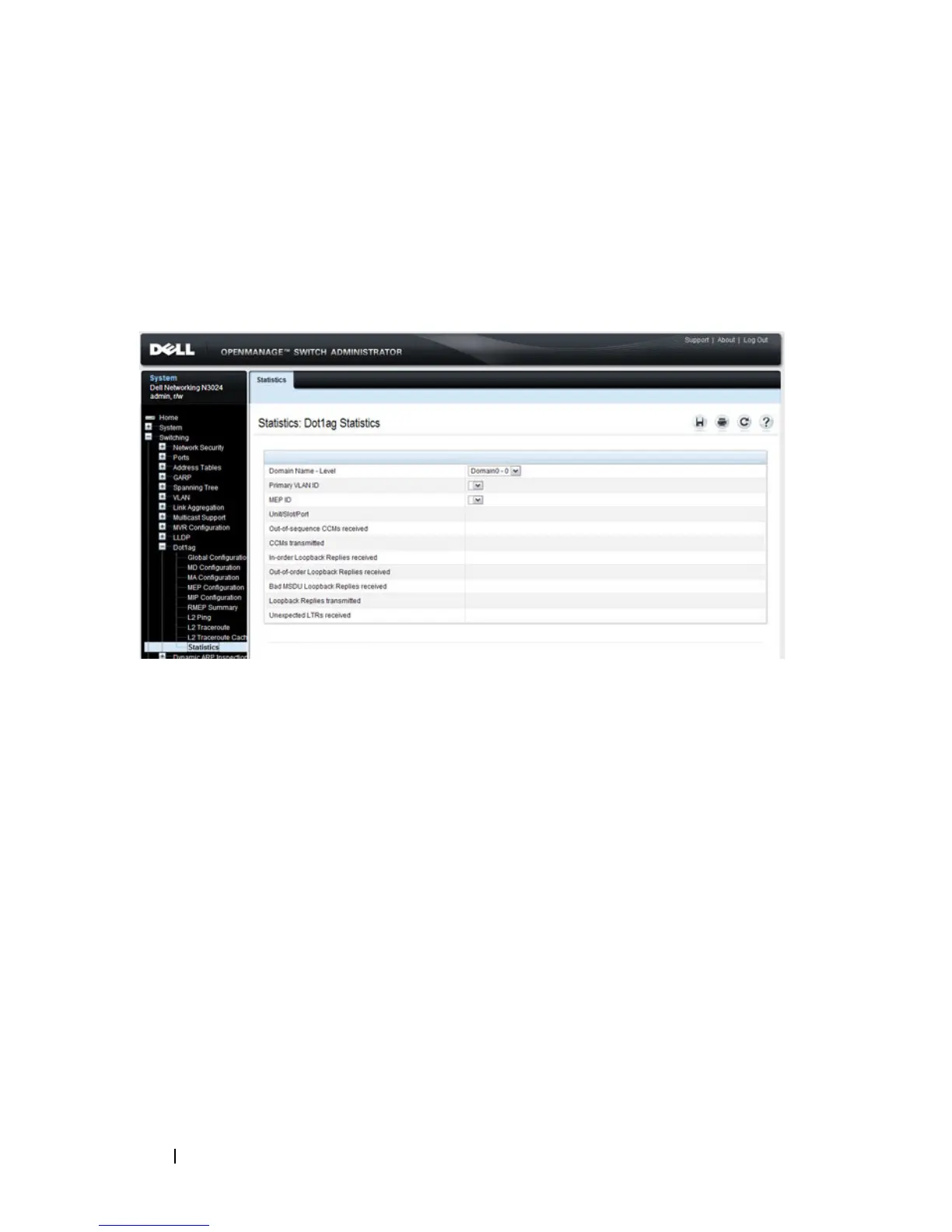

Figure 26-13. Dot1ag Statistics
