Configuring VLANs 681

Voice VLAN

Use the Voice VLAN Configuration

page to configure and view voice VLAN

settings that apply to the entire system and to specific interfaces.

To display the page, click Switching

→

VLAN

→

Voice VLAN

→

Configuration

in the

navigation panel

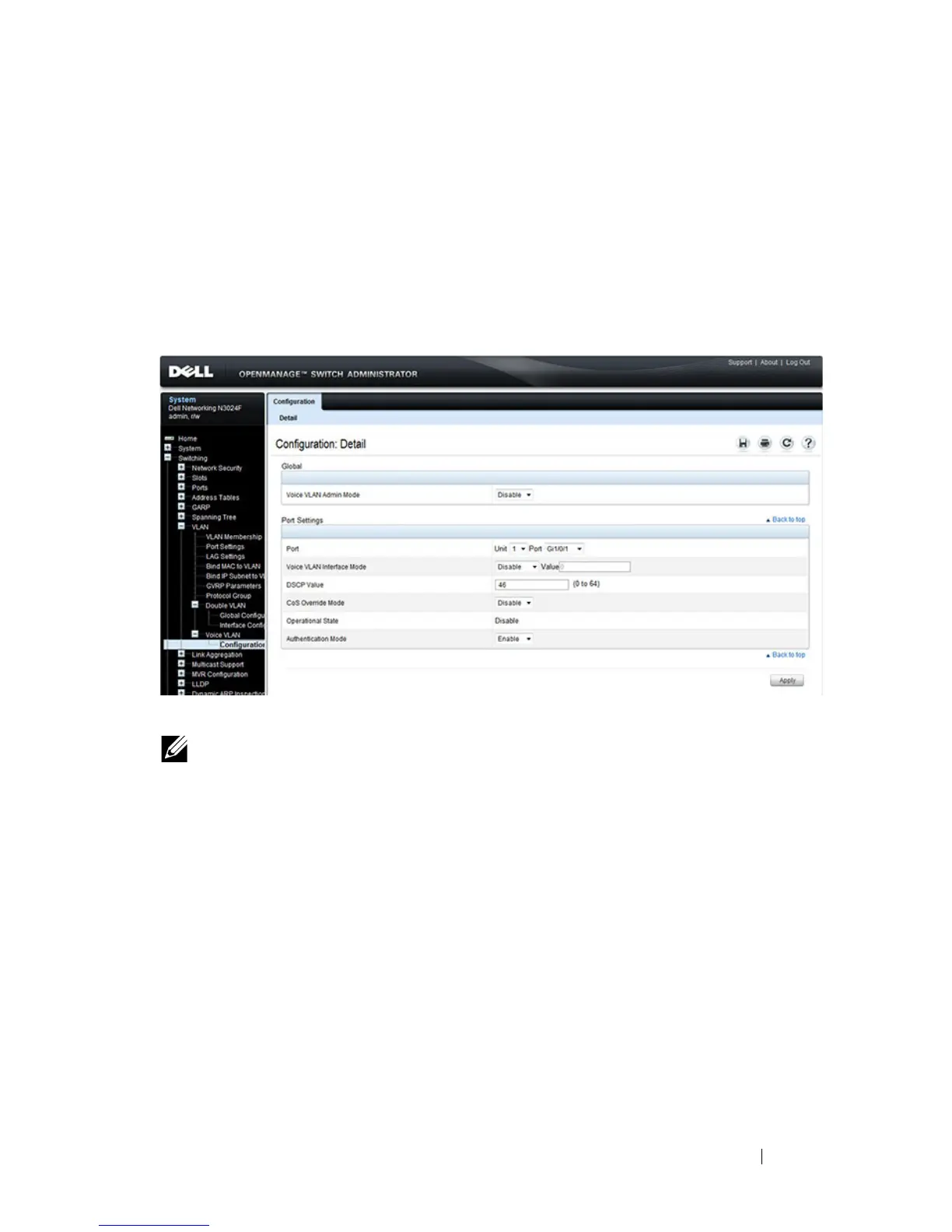

Figure 21-25. Voice VLAN Configuration

NOTE: IEEE 802.1X must be enabled on the switch before you disable voice

VLAN authentication. Voice VLAN authentication can be disabled in order to

allow VoIP phones that do not support authentication to send and receive

unauthenticated traffic on the Voice VLAN.
