Dell N3000 Series User Manual

128 Using Dell OpenManage Switch Administrator
Starting the Application
To access the Dell OpenManage Switch Administrator and log on to the
switch:
1
Open a web browser.
2 Enter the IP address of the switch in the address bar and press <Enter>.
For information about assigning an IP address to a switch, see "Setting the
IP Address and Other Basic Network Information" on page 147.
3 When the Login window displays, enter a user name and password.
Passwords are both case sensitive and alpha-numeric.

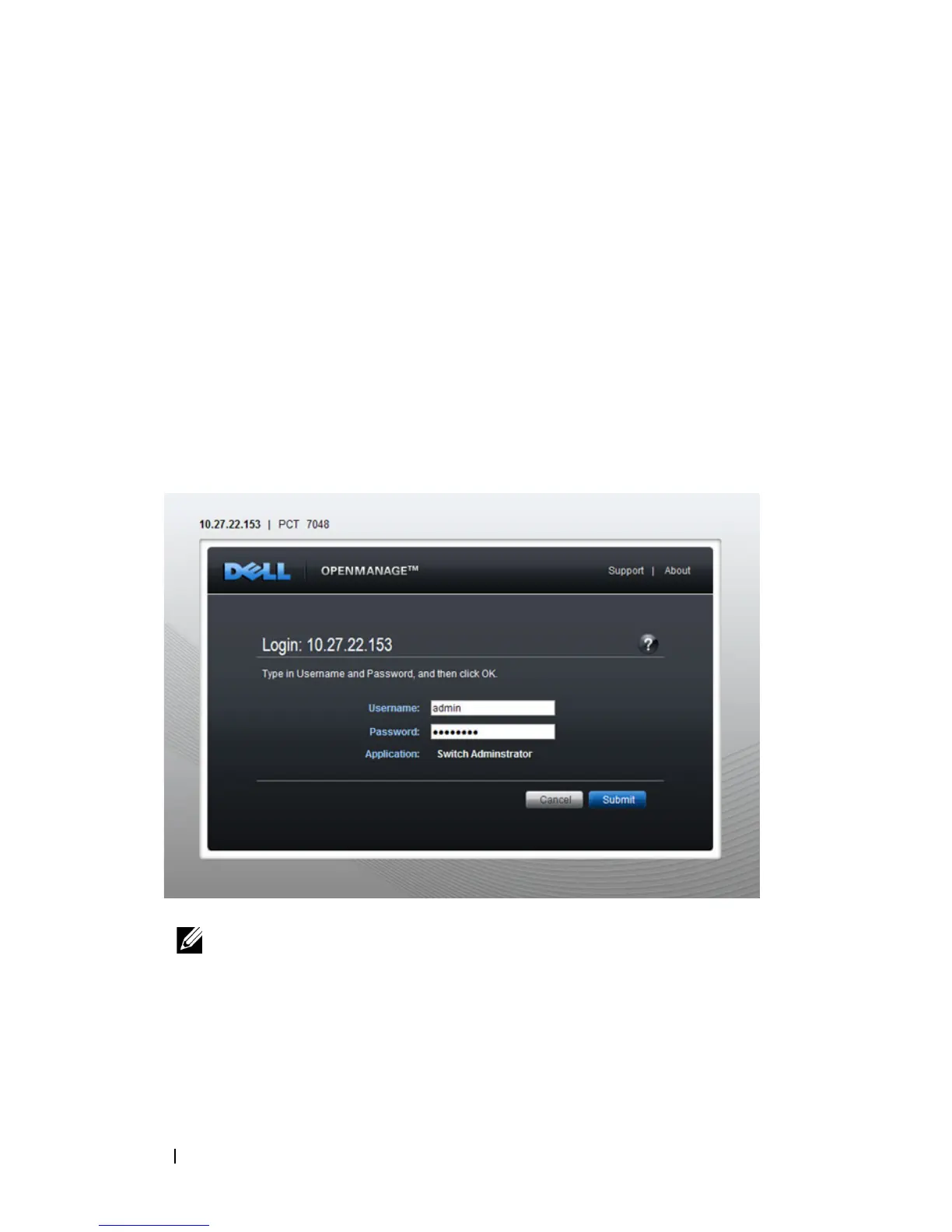

Figure 4-1. Login Screen
4 Click Submit .
NOTE: The switch is not configured with a default user name or password.
You must connect to the CLI by using the console port to configure the initial
user name and password. For information about connecting to the console,
see "Console Connection" on page 135. For information about creating a user
and password, see "Configuring Authentication, Authorization, and
Accounting" on page 207.

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
