902 Snooping and Inspecting Traffic

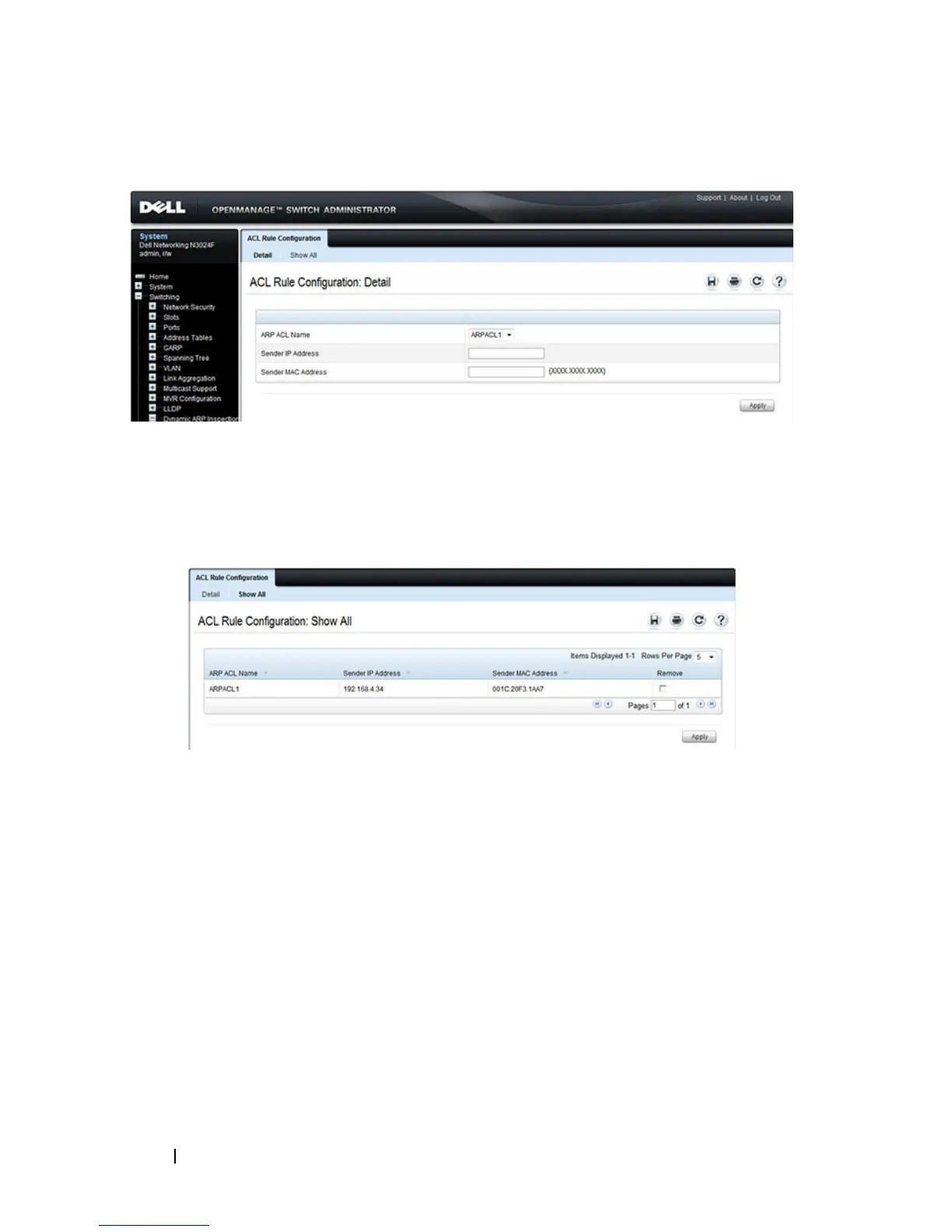

Figure 27-22. Dynamic ARP Inspection Rule Configuration

To view a summary of the ARP ACL rules that have been created, click Show

All.

Figure 27-23. Dynamic ARP Inspection ACL Rule Summary

To remove an ARP ACL rule, select the Remove checkbox associated with the

rule and click Apply.

DAI Statistics

Use the DAI Statistics page to display the statistics per VLAN.

To display the DAI Statistics page, click Switching

→

Dynamic ARP

Inspection

→

Statistics in the navigation panel.
