Dell N3000 Series User Manual

Managing IPv4 and IPv6 Multicast 1375
MLD Routing Interface Summary
Use the Interface Summary page to display information and statistics on a
selected MLD-enabled interface. You must configure at least one IGMP
VLAN routing interface to access this page.
To access this page, click IPv6 Multicast
→ MLD → Routing Interface →
Interface Summary in the navigation panel.

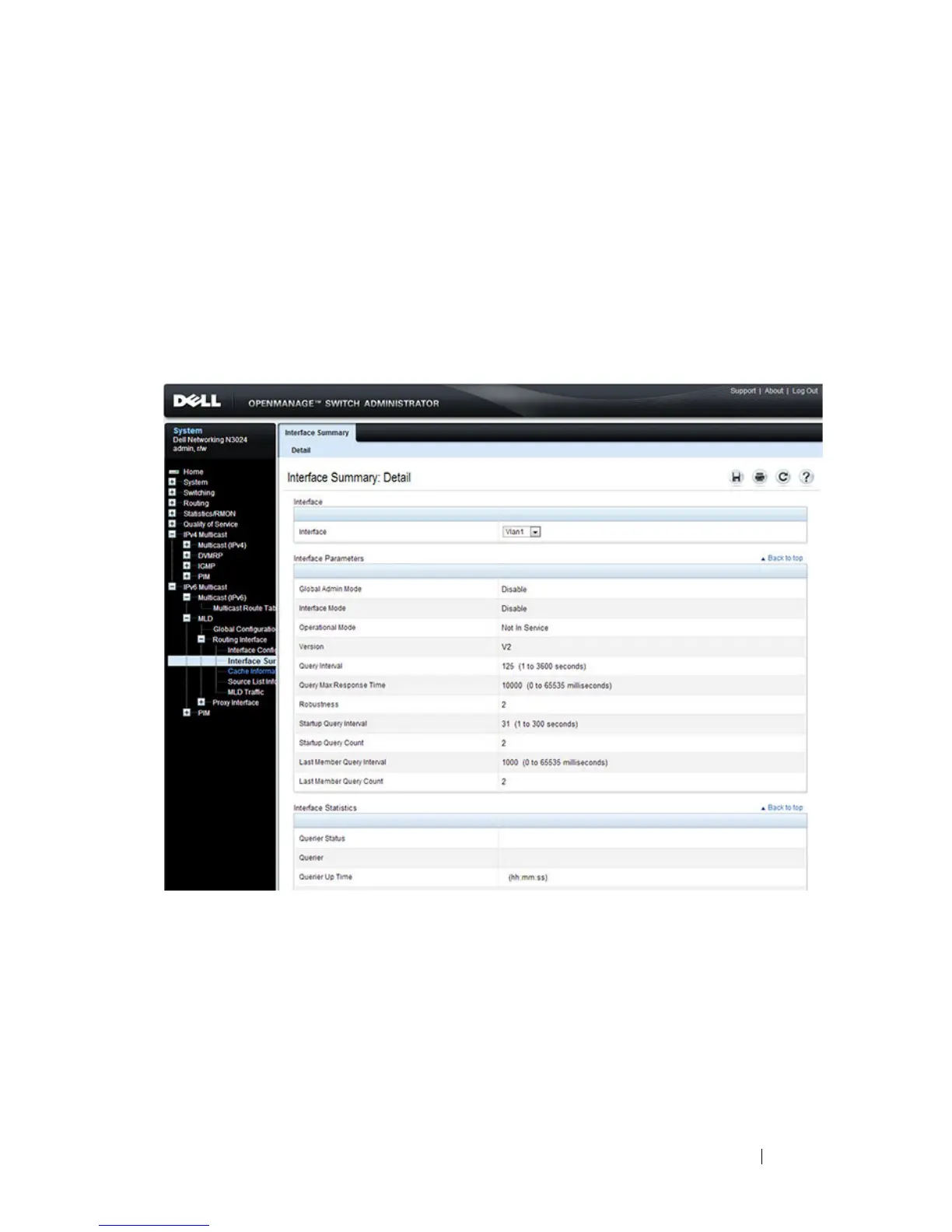

Figure 43-28. MLD Routing Interface Summary
MLD Routing Interface Cache Information
The Interface Cache Information page displays cache parameters and data
for an IP multicast group address that has been reported to operational MLD
routing interfaces. You must configure at least one MLD VLAN routing
interface to access this page. Also, group membership reports must have been

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
