Dell N3000 Series User Manual

Configuring Port Characteristics 491
Link Dependency Summary
Use the Link Dependency Summary page to view all link dependencies on
the system and to access the Link Dependency Configuration page. You can
create a maximum of 16 dependency groups. The page displays the groups
whether they have been configured or not.
To display the Link Dependency Summary page, click Switching
→ Link
Dependency
→ Link Dependency Summary in the navigation panel.

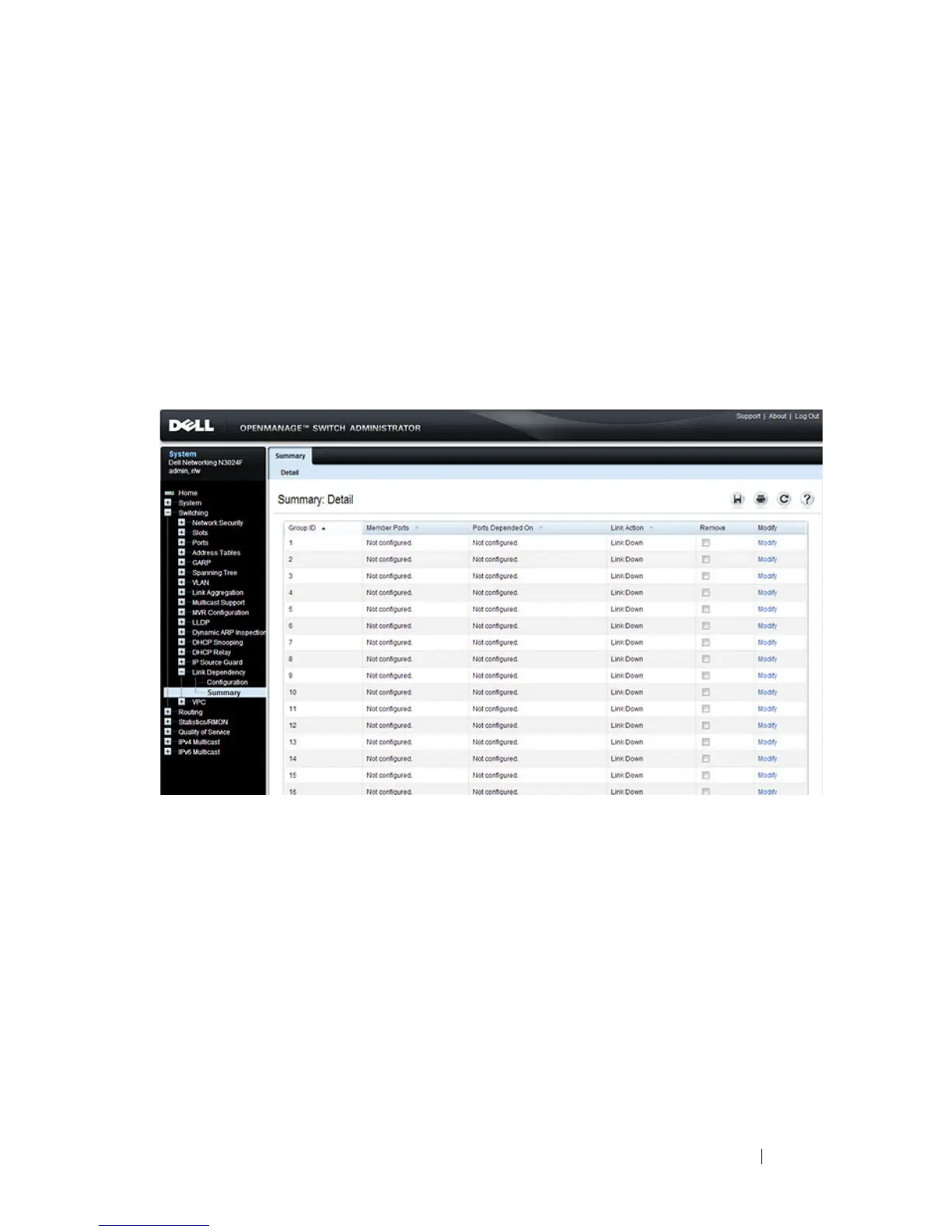

Figure 18-6. Link Dependency Summary
To configure a group, click the Modify link associated with the ID of the
group to configure. Clicking the Modify link takes you to the Link
Dependency Configuration page. The Group ID is automatically selected
based on the link that was clicked.

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
