Dell N3000 Series User Manual

Discovering Network Devices 767
ISDP Interface Configuration
From the ISDP Interface Configuration page, you can configure the ISDP
settings for each interface.
If ISDP is enabled on an interface, it must also be enabled globally in order
for the interface to transmit ISDP packets. If the ISDP mode on the ISDP
Global Configuration page is disabled, the interface will not transmit ISDP
packets, regardless of the mode configured on the interface.
To access the ISDP Interface Configuration page, click System
→ ISDP →
Interface Configuration in the navigation panel.

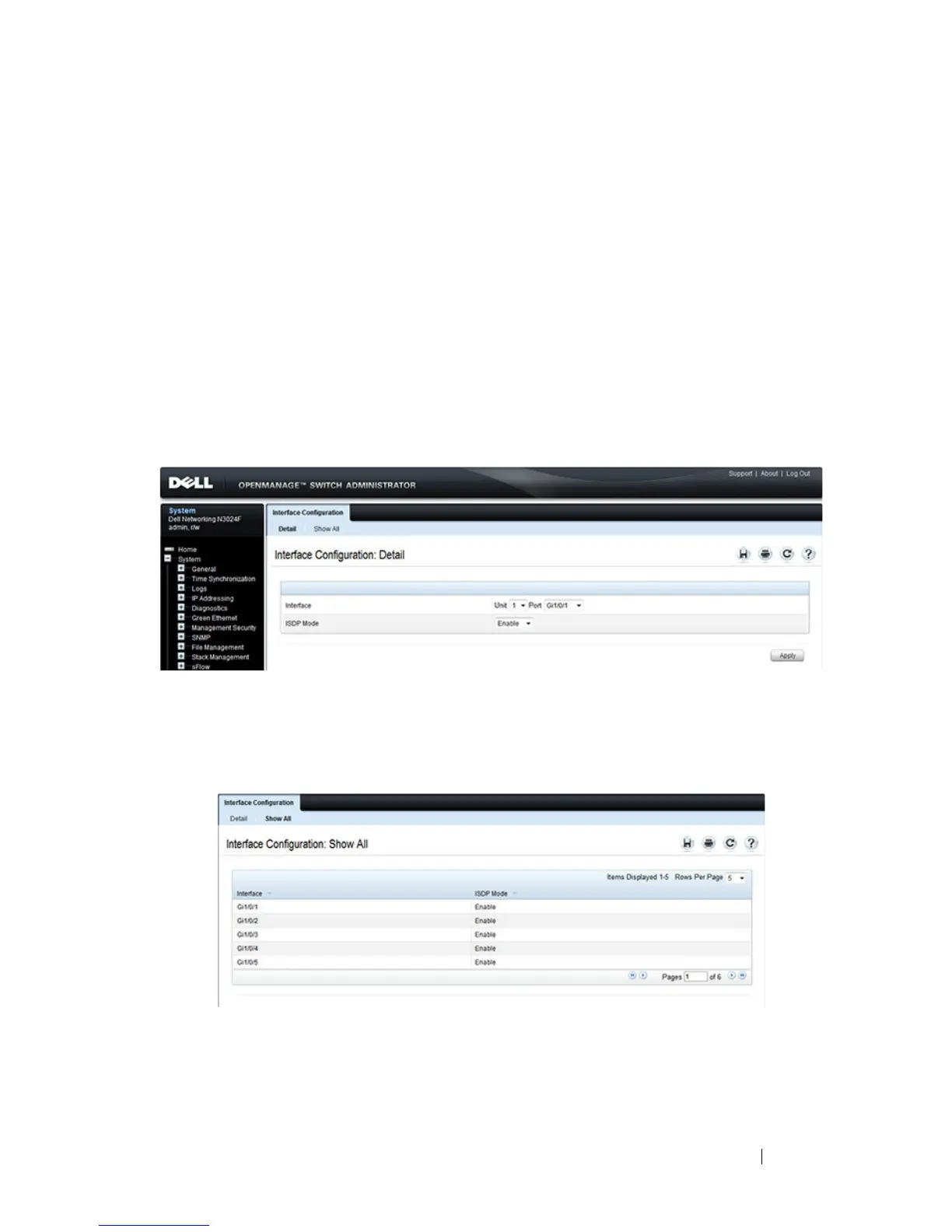

Figure 23-3. ISDP Interface Configuration
To view view the ISDP mode for multiple interfaces, click Show All.
Figure 23-4. ISDP Interface Summary

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
