Dell N3000 Series User Manual

Configuring the Spanning Tree Protocol 741

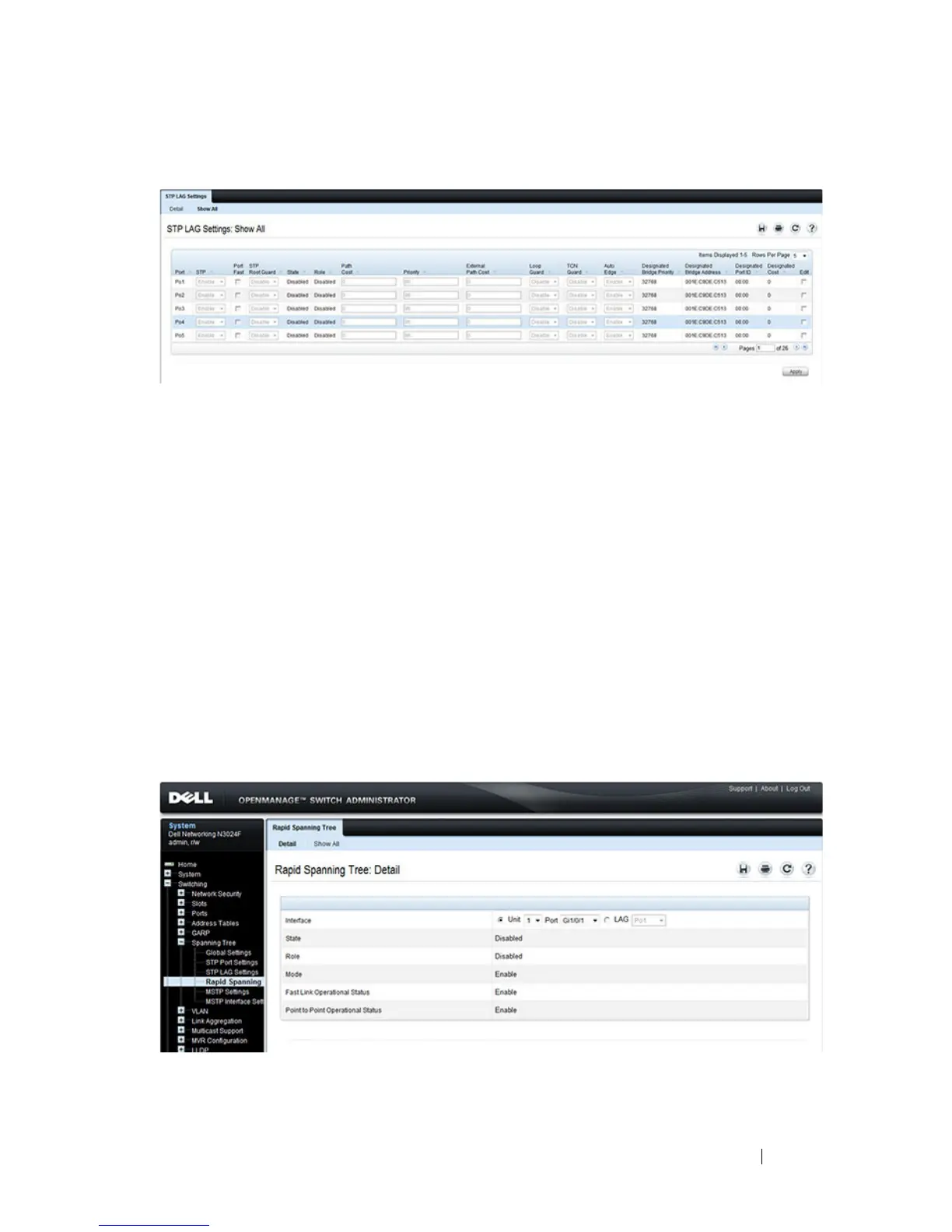

Figure 22-13. Configure STP LAG Settings
3 For each LAG to configure, select the check box in the Edit column in the
row associated with the LAG.
4 Select the desired settings.
5 Click Apply .
Rapid Spanning Tree
Rapid Spanning Tree Protocol (RSTP) detects and uses network topologies
that allow a faster convergence of the spanning tree without creating
forwarding loops.
To display the Rapid Spanning Tree page, click Switching
→ Spanning Tree
→ Rapid Spanning Tree in the navigation panel.
Figure 22-14. Rapid Spanning Tree

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
