1396 Managing IPv4 and IPv6 Multicast

DVMRP Configuration Summary

Use the Configuration Summary

page to display the DVMRP configuration

and data for a selected interface. You must configure at least one VLAN

routing interface before you can display data for a DVMRP interface.

Otherwise you see a message telling you that no VLAN router interfaces are

available, and the configuration summary screen is not displayed.

To display the page, click IPv4 Multicast

→

DVMRP

→

Configuration

Summary in the navigation panel.

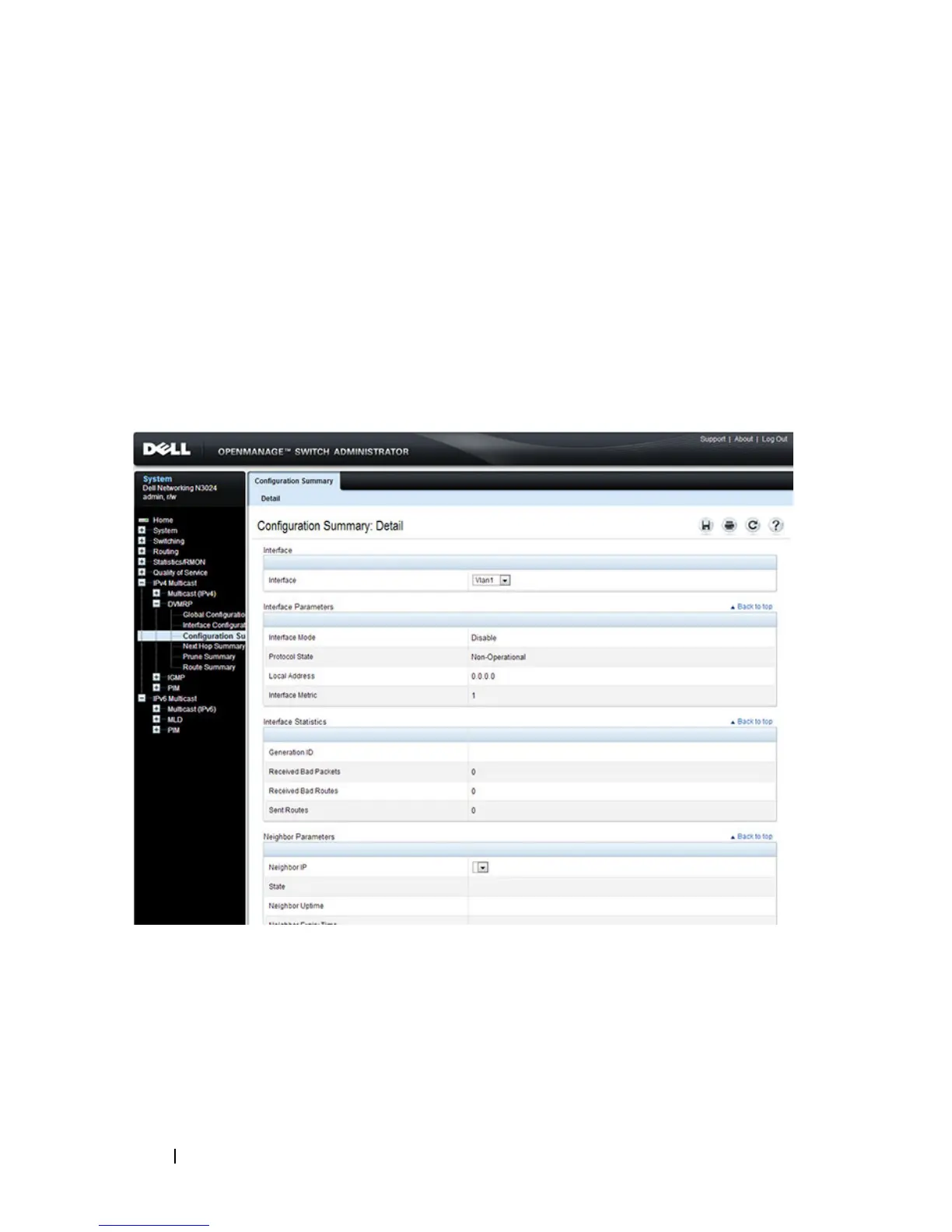

Figure 43-50. DVMRP Configuration Summary
