Dell N3000 Series User Manual

Configuring DHCPv6 Server and Relay Settings 1269
DHCPv6 Pool Configuration
Use the Pool Configuration page to set up a pool of DHCPv6 parameters for
DHCPv6 clients. The pool is identified with a pool name and contains IPv6
addresses and domain names of DNS servers.
To display the page, click Routing
→ IPv6 → DHCPv6 → Pool
Configuration in the navigation panel. Figure 39-3 shows the page when no
pools have been created. After a pool has been created, additional fields
display.

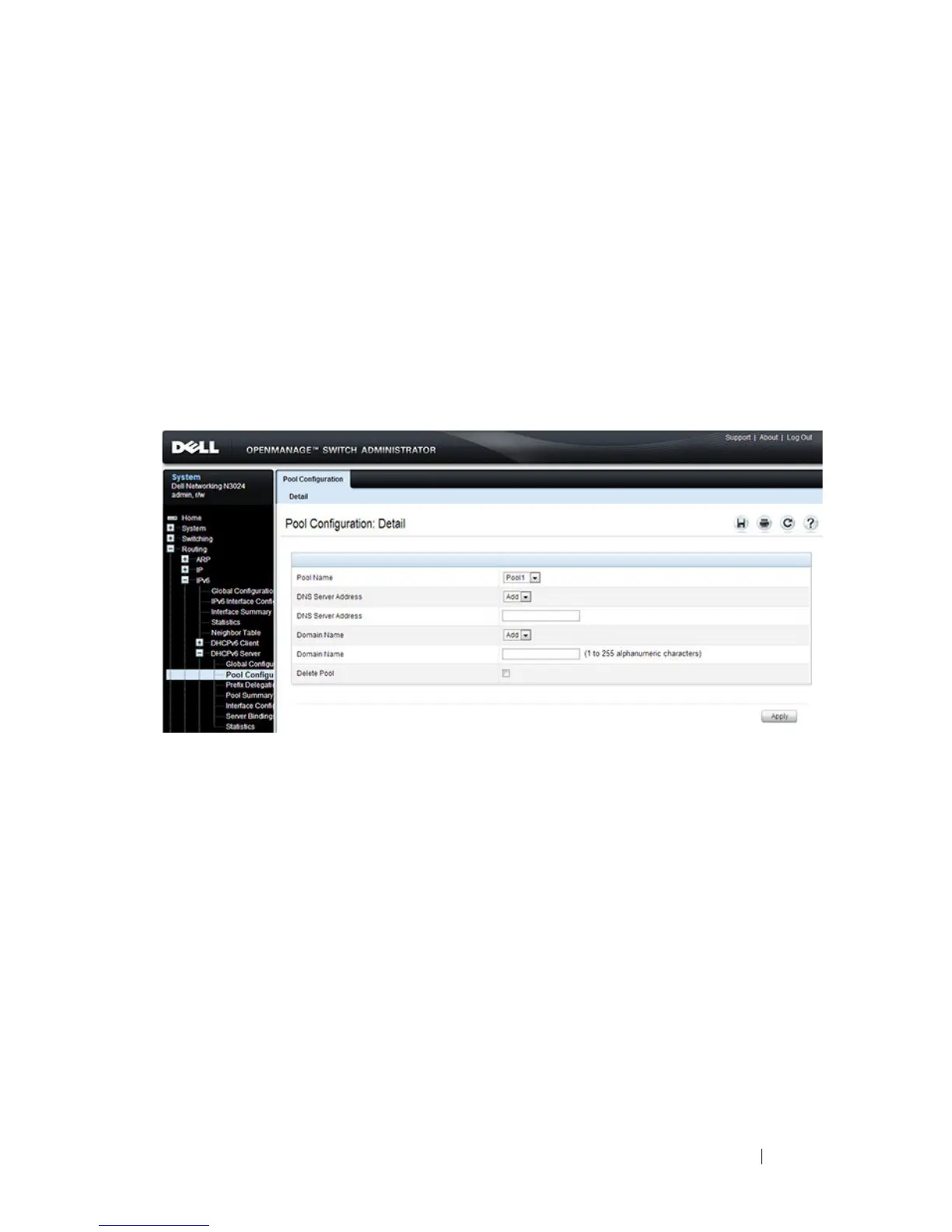

Figure 39-3. Pool Configuration
Configuring a DHCPv6 Pool
To configure the pool:
1
Open the Pool Configuration page.
2 Select Create from the Pool Name menu and type a name in the Pool
Name
text box.
3 Click Apply .

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
