Dell N3000 Series User Manual

Configuring Differentiated Services 1297
Service Configuration
Use the DiffServ Service Configuration page to activate a policy on a port.
To display the
page, click Quality of Service → Differentiated Services →
Service Configuration in the navigation panel.

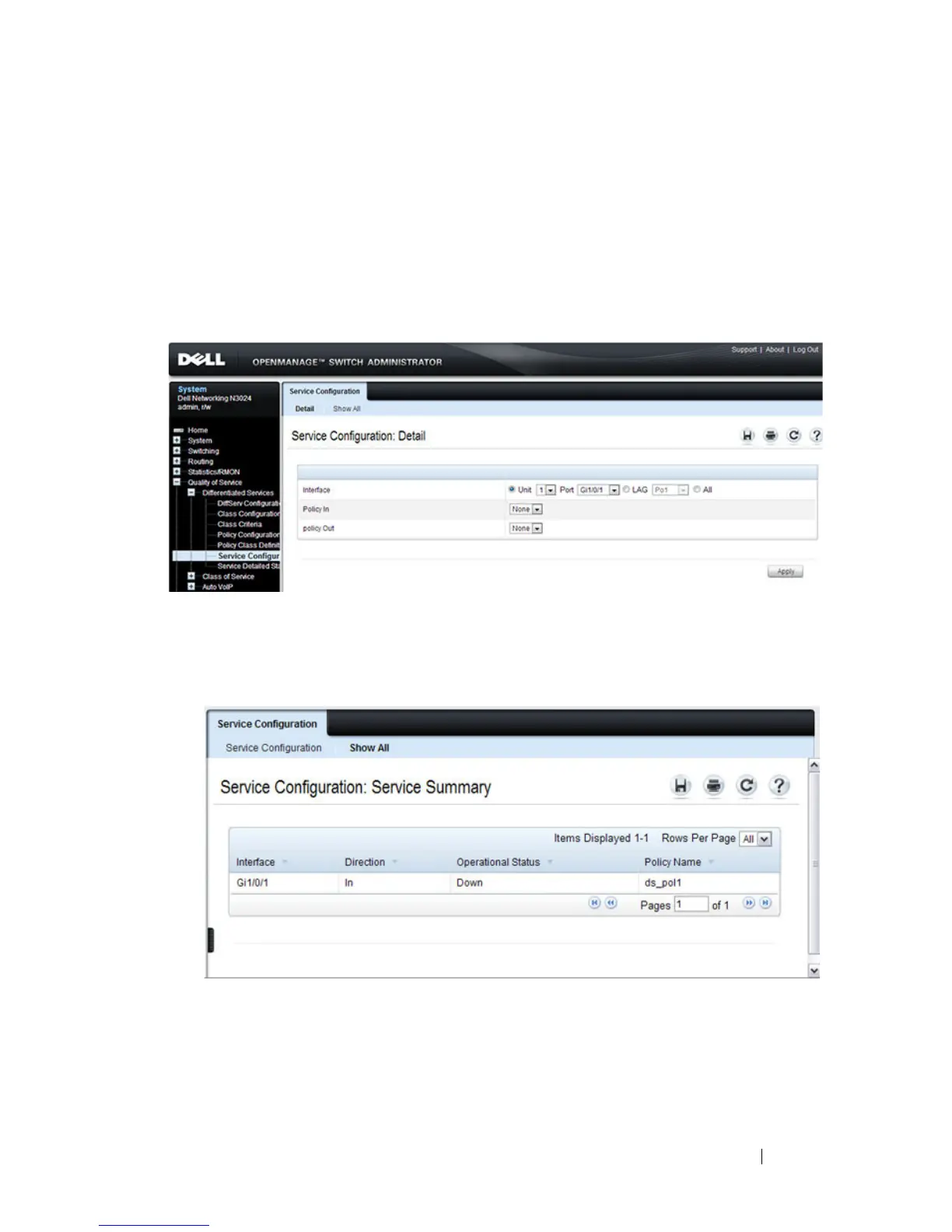

Figure 40-13. DiffServ Service Configuration
To view a summary of the services configured on the switch, click Show All.
Figure 40-14. DiffServ Service Summary

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
