Dell N3000 Series User Manual

Managing IPv4 and IPv6 Multicast 1361
Multicast Admin Boundary Summary
Use the Admin Boundary Summary page to display existing administratively
scoped boundaries.
To display the page, click IPv4 Multicast
→ Multicast → Admin Boundary
Summary in the navigation panel.

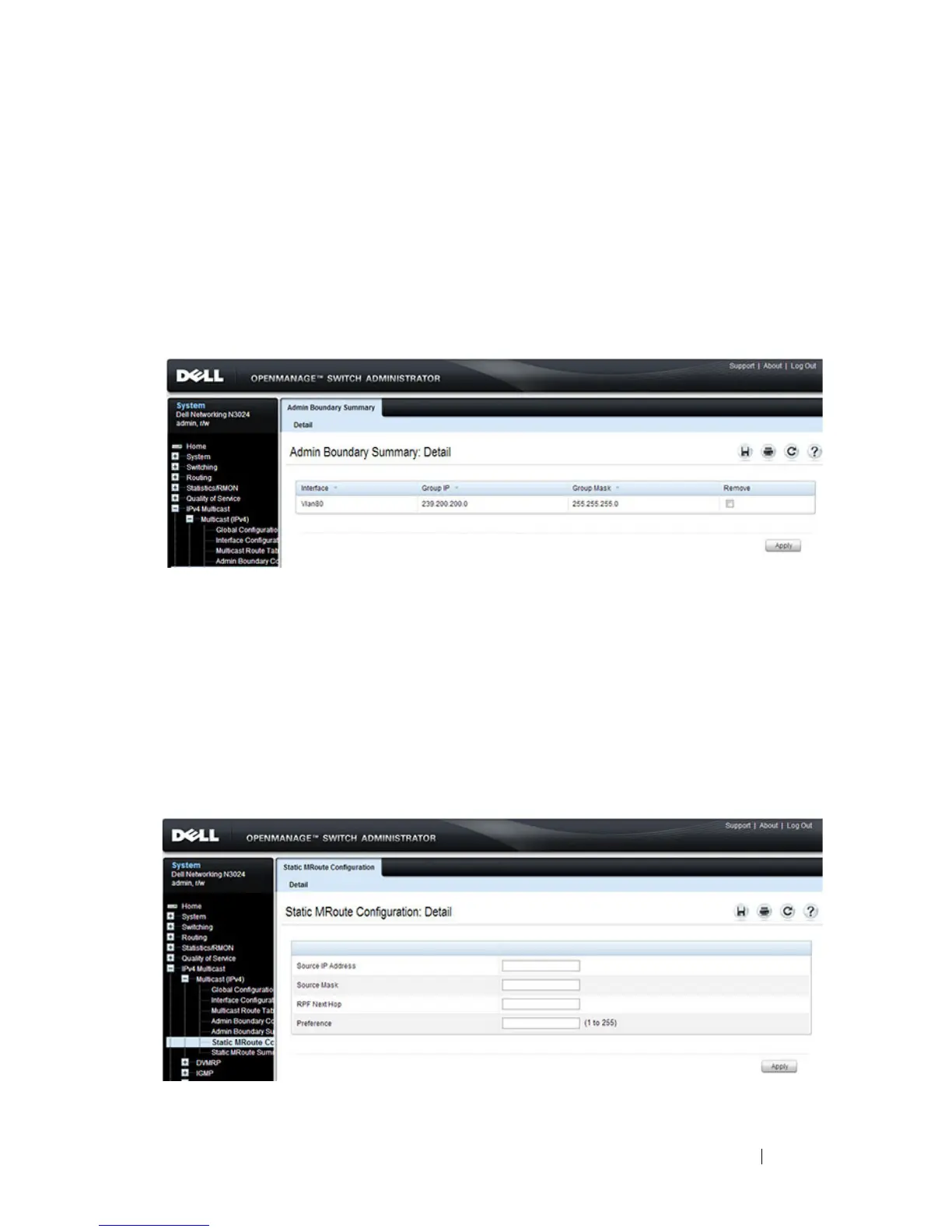

Figure 43-13. Multicast Admin Boundary Summary
Multicast Static MRoute Configuration
Use the Static MRoute Configuration page to configure a new static entry in
the Mroute table or to modify an existing entry.
To display the page, click IPv4 Multicast
→ Multicast → Static MRoute
Configuration in the navigation panel.
Figure 43-14. Multicast Static MRoute Configuration
