Dell N3000 Series User Manual

Configuring IP Routing 1077
Configured Routes
Use the Configured Routes page to display the routes that have been
manually configured.
To display the page, click Routing
→ Router → Configured Routes in the
navigation panel.

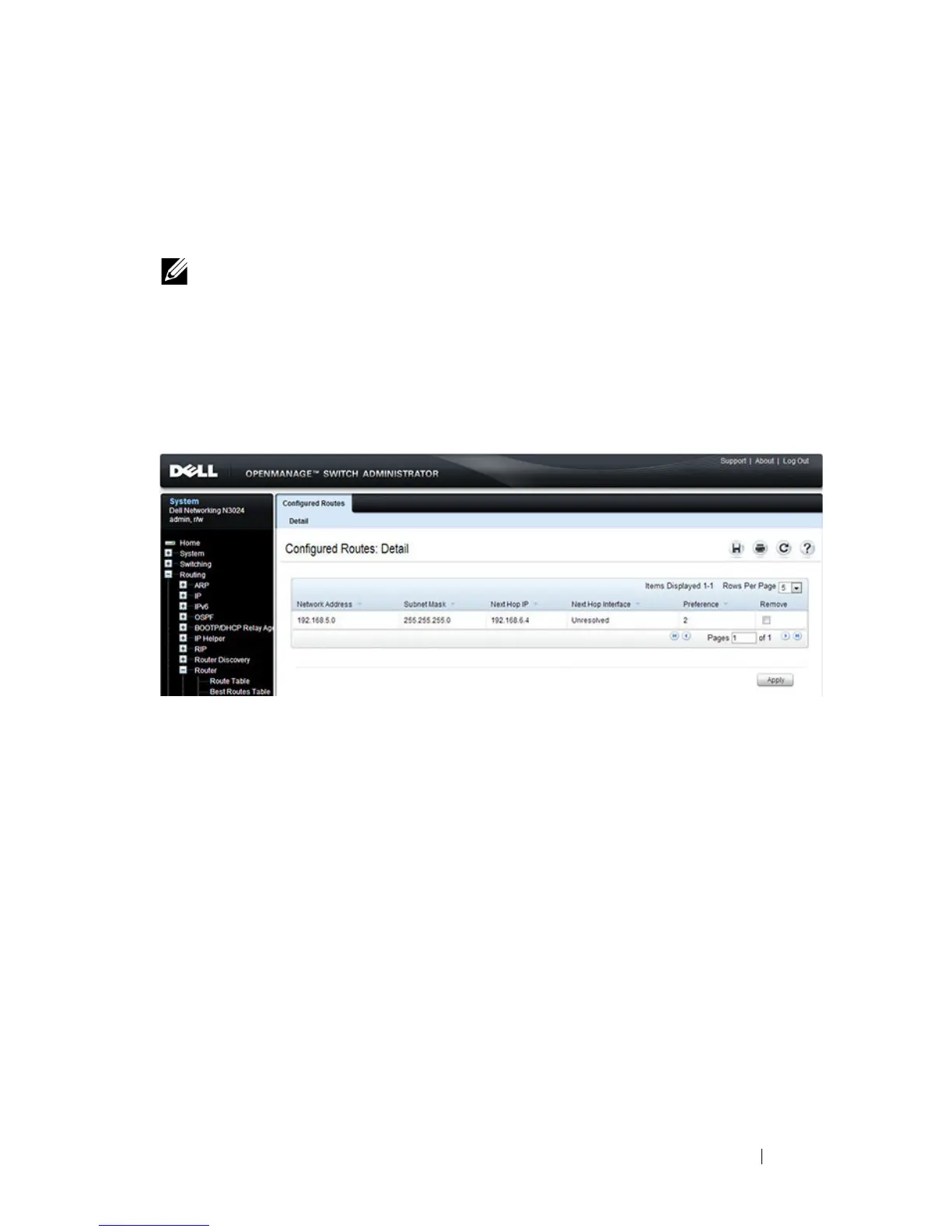

Figure 33-11. Configured Routes
To remove a configured route, select the check box in the Remove column of
the route to delete, and click Apply.
NOTE: For a static reject route, the next hop interface value is Null0. Packets to
the network address specified in static reject routes are intentionally dropped.

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
