Managing IPv4 and IPv6 Multicast 1377

MLD Traffic

The MLD Traffic page displays summary statistics on the MLD messages

sent to and from the router.

To access this page, click IPv6 Multicast

→

MLD

→

Routing Interface

→

MLD Traffic in the navigation panel.

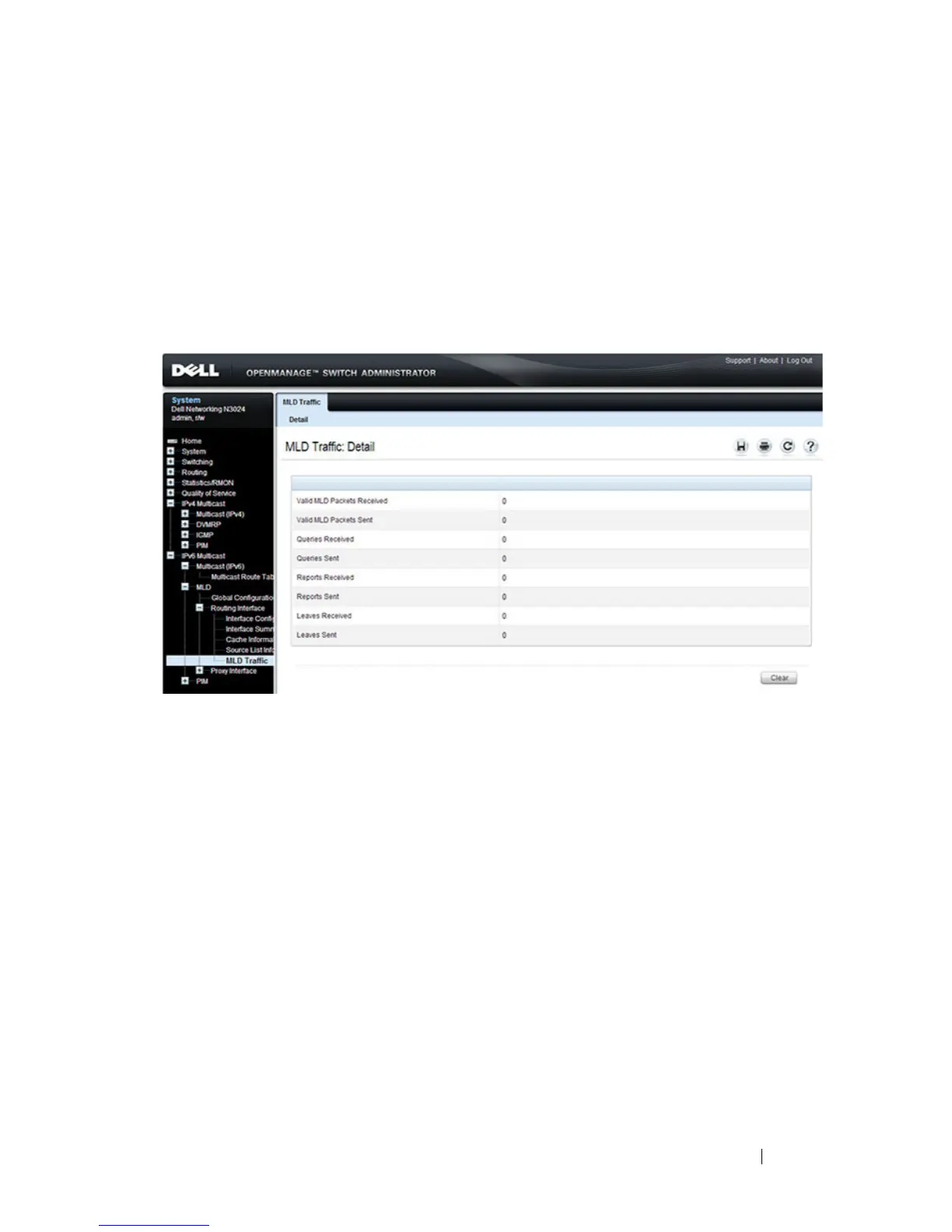

Figure 43-31. MLD Traffic
