Dell N3000 Series User Manual

188 Managing a Switch Stack
Stack Port Summary
Use the Stack Port Summary page to configure the stack-port mode and to
view information about the stackable ports. This screen displays the unit, the
stackable interface, the configured mode of the interface, the running mode
as well as the link status and link speed of the stackable port.
To display the Stack Port Summary page, click System
→ Stack Management
→ Stack Port Summary in the navigation panel.

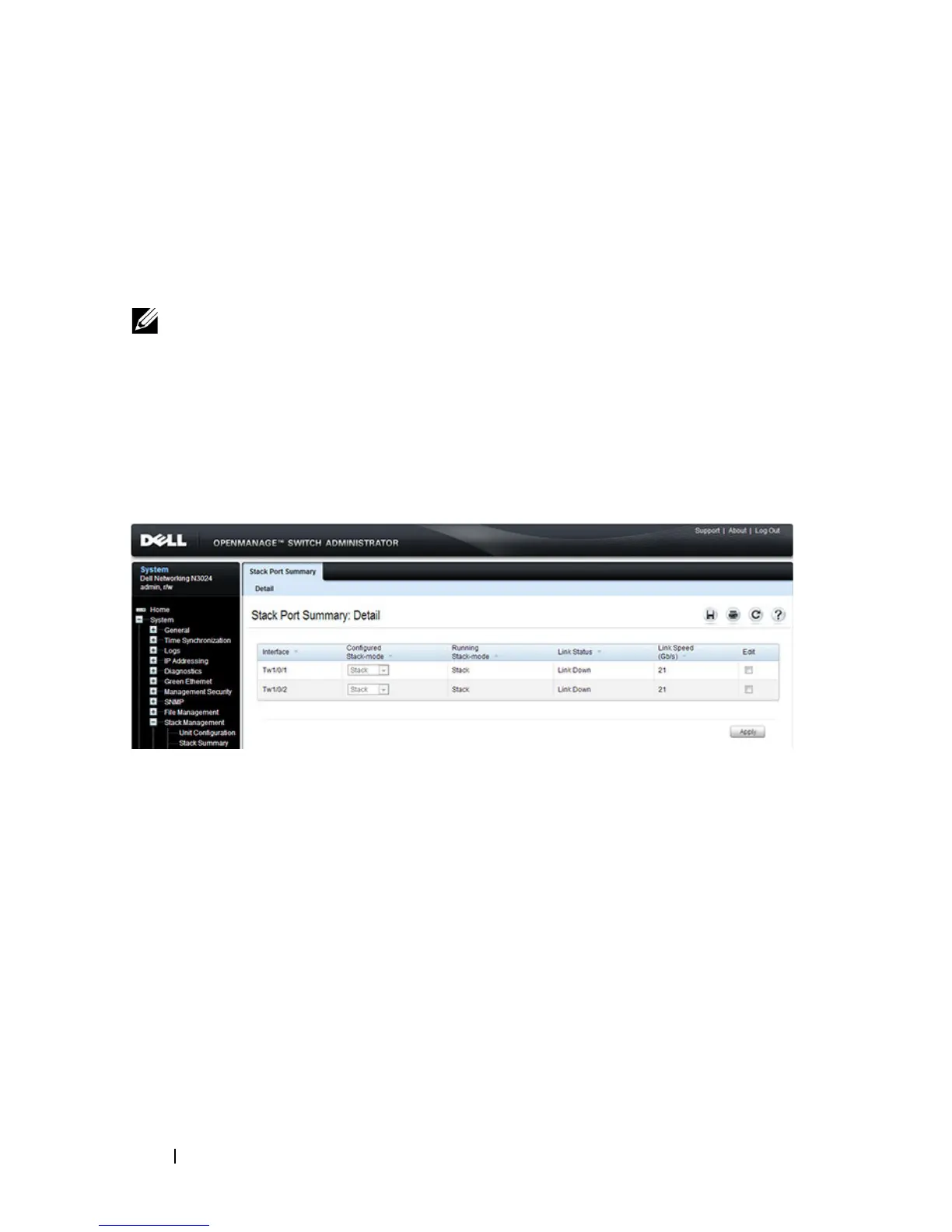

Figure 9-7. Stack Port Summary
NOTE: By default the ports are configured to operate as Ethernet ports. To
configure a port as a stack port, you must change the Configured Stack Mode
setting from Ethernet to Stack.

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
