Dell N3000 Series User Manual

Configuring the Spanning Tree Protocol 745
MSTP Interface Settings
Use the MSTP Interface Settings page to assign MSTP settings to specific
interfaces.
To display the MSTP Interface Settings page, click Switching
→ Spanning
Tree
→ MSTP Interface Settings in the navigation panel.

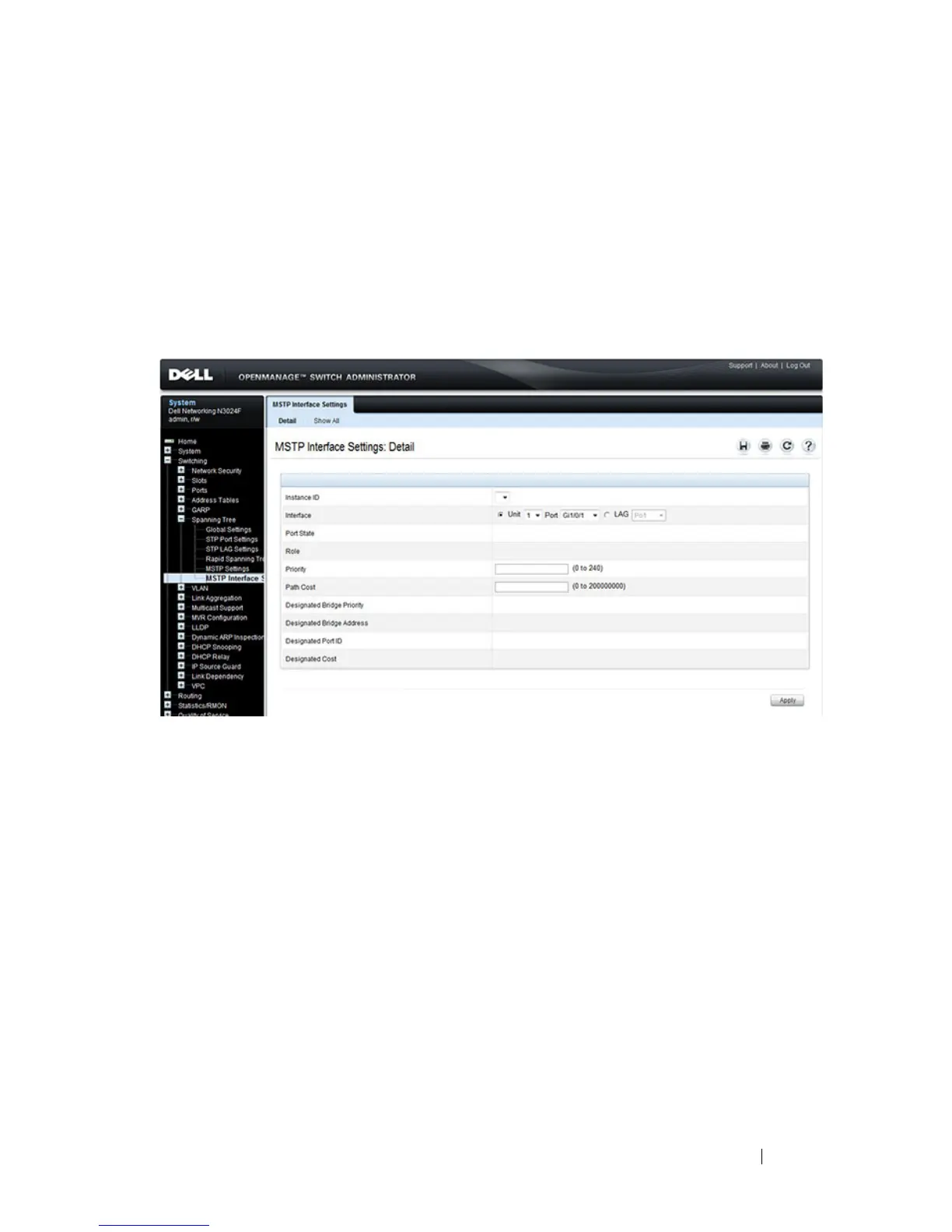

Figure 22-18. MSTP Interface Settings
Configuring MSTP Settings for Multiple Interfaces
To configure MSTP settings for multiple interfaces:
1
Open the MSTP Interface Settings page.
2 Click Show All to display the MSTP Interface Table .
3 For each interface to configure, select the check box in the Edit column in
the row associated with the interface.
4 Update the desired settings.
5 Click Apply .

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
