3.10 Setting a splash screen for the EASY-E4-...-12...C1(P) display
3.10 Setting a splash screen for the EASY-E4-...-12...C1(P) display
You can create your own custom monochromatic image externally in any program.
Simply make sure that the image is in BMP format and is named boot.bmp.
The size is set at 128 x 96 pixels (width x height) or, alternatively, 128 x 64 pixels. You
can use two colors, which will be shown as shades of gray.
Make sure that the file always keeps the name boot.bmp!
Splash screen

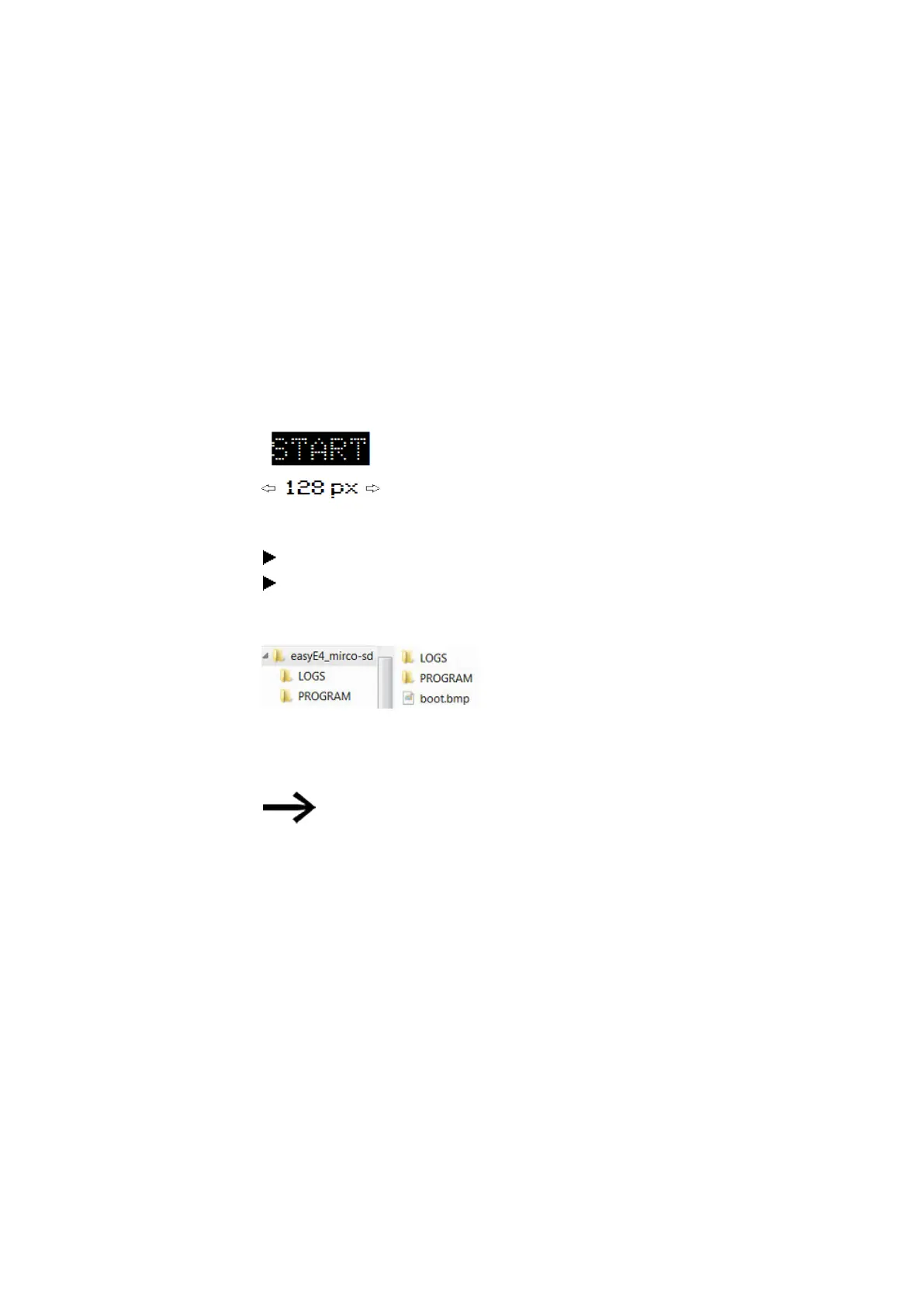

Fig. 75: boot.bmp
Transfer the image to the microSD memory card.
Store the boot.bmp file directly on the memory card.
microSD memory card in the PC
Fig. 76: Storing the boot.bmp file
As soon as the easyE4 device is switched on,
the boot.bmp will be shown as a splash screen for the defined duration.
In order for the splash screen to keep working, the microSD
memory card must remain in the device.
