Eaton easyE4 User Manual

6. Function blocks
6.1 Manufacturer function blocks
6.1.4.5 VC - Value limitation
General
easyE4 base devices provide 32 value limitation function
blocks, VC01 through VC32.
These function blocks can be used to output values within
specific limits.
Operating principle
The lower and upper limits are set using function block inputs SL (Low) and SH
(High). The value at function block output QV will follow the value at function block
input I1 as long as the latter falls within the limits. Values outside of the range will be
truncated accordingly.
EN=0 will carry out a reset and function block output QV will be set to a value of 0.

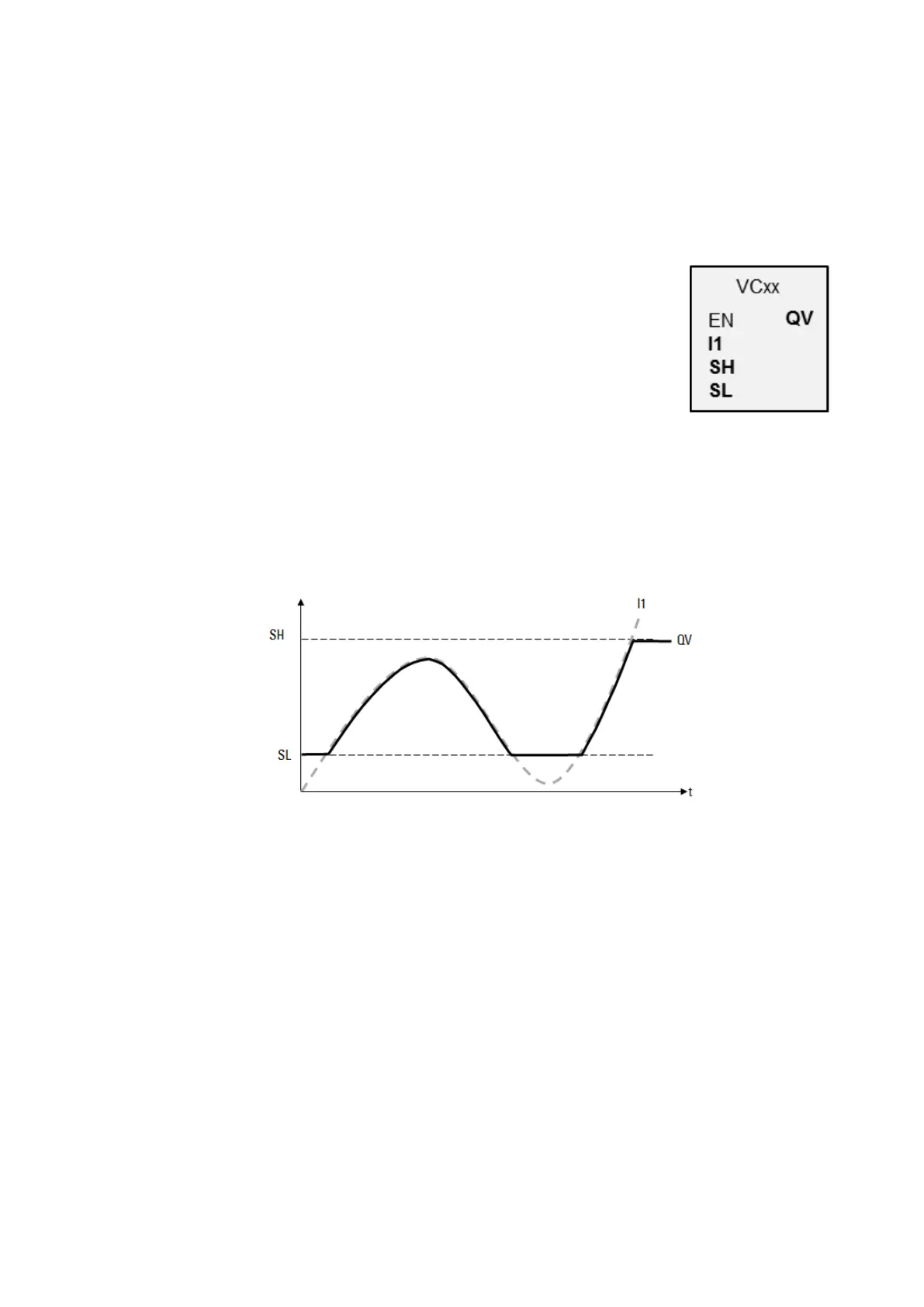

Fig. 205: Figure: Restriction of the input values to the specified limits.
SL: Lower limit I1: Input function at I1
SH. Upper limit QV: Bounded output function at QV
406
easyE402/24 MN050009ENEaton.com
