2. Installation
2.4 Connection terminals
2.4.3 Connecting the power supply
Cable protection
NOTICE
Make sure to meet all relevant line protection requirements!
Connect a circuit protection device (F1) rated for at least 1 A (slow) to all base
devices.
You may need a higher circuit protection rating depending on the type and con-
nection of the expansion devices (F1).
You can use a shared, adequately sized circuit protection device for the base device,
expansion device(s), and easy communication module that takes into account the
amount - a maximum of 11 and the terminal - with UC, DC, and AC power.
12, 24 V DC/24 V AC
24 V DC
UC:
DC:
0 V/ N
F1 > 1 A
+24 V 0 V + UC 0 V
EASY-E4-DC-12TC1(P)
EASY-E4-DC-12TCX1(P)
EASY-E4-UC-12RC1(P)
EASY-E4-UC-12RCX1(P)
L N N
EASY-E4-AC-12RC1(P)
EASY-E4-AC-12-RCX1(P)
AC:
100 - 240 V AC/DC (cULus 100 - 110 V DC)
L
Ue

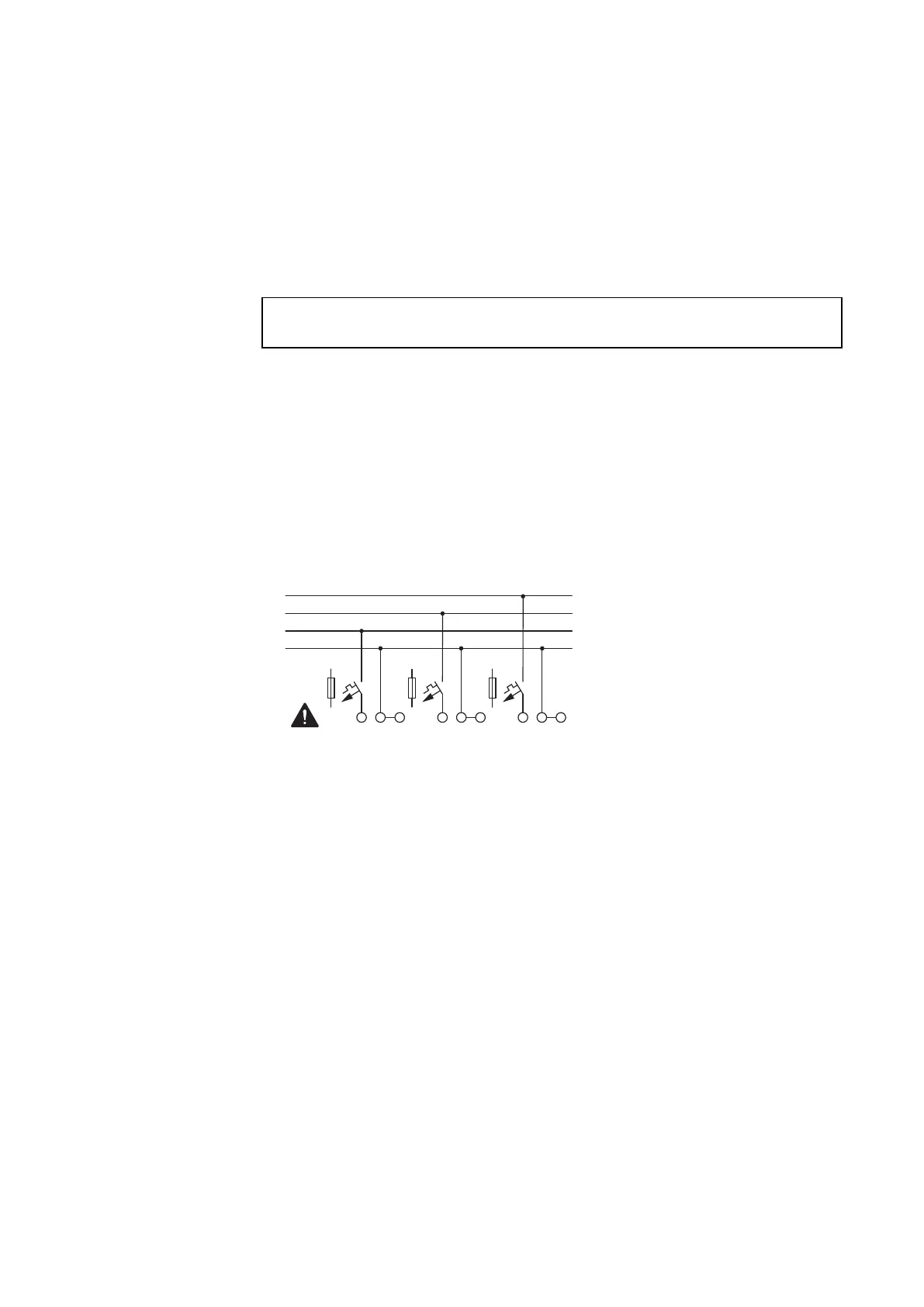

Fig. 17: Connecting the power supply for base devices
68
easyE402/24 MN050009ENEaton.com
