Eaton easyE4 User Manual

4. Operation
4.6 Transfer program to the easyE4 device
4.6.2 Establishing an Ethernet connection
Establishing a connection between a PC and an easyE4 base device
In order to be able to establish a connection, your PC must first have the required Eth-
ernet capability. This capability can be in the form of a local Ethernet port on the PC
or a standard adapter (e.g., USB-to-Ethernet adapter).
The PC's and the easyE4 base device's IP addresses must fall within the same range,
i.e., the addresses' first two or three numbers must be the same, while the last num-
ber must be different and not equal to 0.

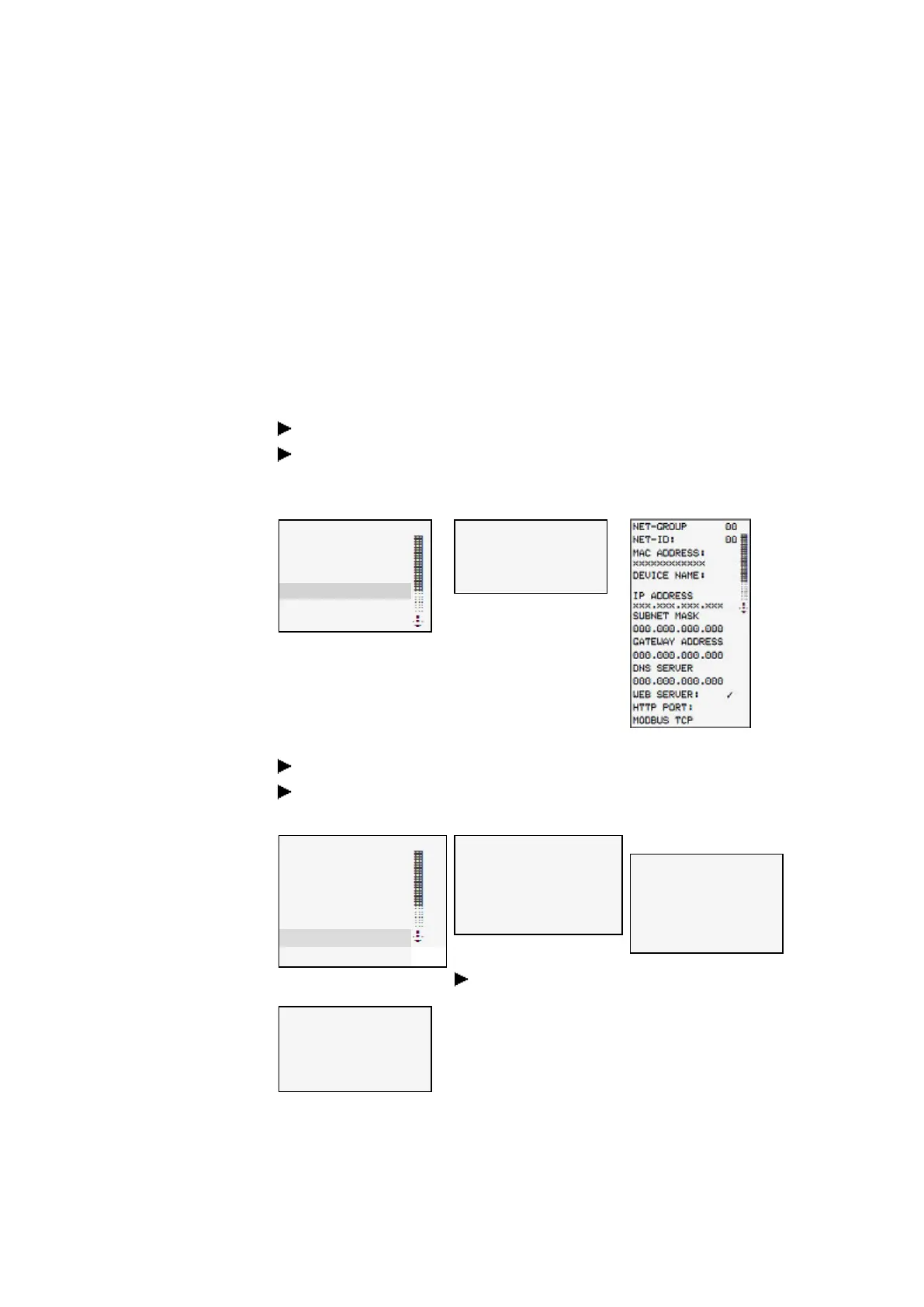

Check the easyE4 device's IP address.
To do this, open the INFORMATION\ACTUAL CONFIG menu and scroll to IP
ADDRESS.
STOP ✓ RUN
PARAMETERS
SET CLOCK
CARD
INFORMATION
SYSTEM OPTIONS
PROGRAM
Tab. 67: Main menu
ACTUAL CONFIG
SYSTEM
Tab. 68: Information
The submenu is only
provided in English
Information\Actual Config
If an IP address has not been assigned yet, enter one.
To do this, open the SYSTEM OPTIONS\ETHERNET\IP Address menu.
STOP ✓ RUN
PARAMETERS
SET CLOCK
CARD
INFORMATION
SYSTEM OPTIONS
PROGRAM
Tab. 69: Main menu
SECURITY
SYSTEM
MENU LANGUAGE
DELETE PROGR.
NET
ETHERNET
UPDATE
Tab. 70: System options
ADDRESS MODE
IP ADDRESS
SUBNET MASK
GATEWAY ADDRESS
DNS SERVER
easyE RTD
Email Test
Tab. 71: System option-
s\Ethernet
IP-ADDRESS
000.000.000.000
Tab. 72: System Option-
s\Ethernet\IP Address
Use the cursor buttons to enter the device's
IP address.
easyE402/24 MN050009ENEaton.com
185
