Eaton easyE4 User Manual

2. Installation
2.4 Connection terminals
2.4.2 Push-in terminals
EASY-E4-...-12...C1P, EASY-E4-...-12...CX1P, EASY-E4-...-...E1P and
EASY-COM-...-.1P devices are designed for use with push-in terminals.
The stripping length for the individual conductors, or the length of the wire end
sleeve at the individual conductors, is 8 mm (0.31“) for this connection.
Push the individual conductors directly into the push-in terminal until the ter-
minal locks in place. If necessary, use a flat-blade screwdriver to help.
8 mm (0.31”)

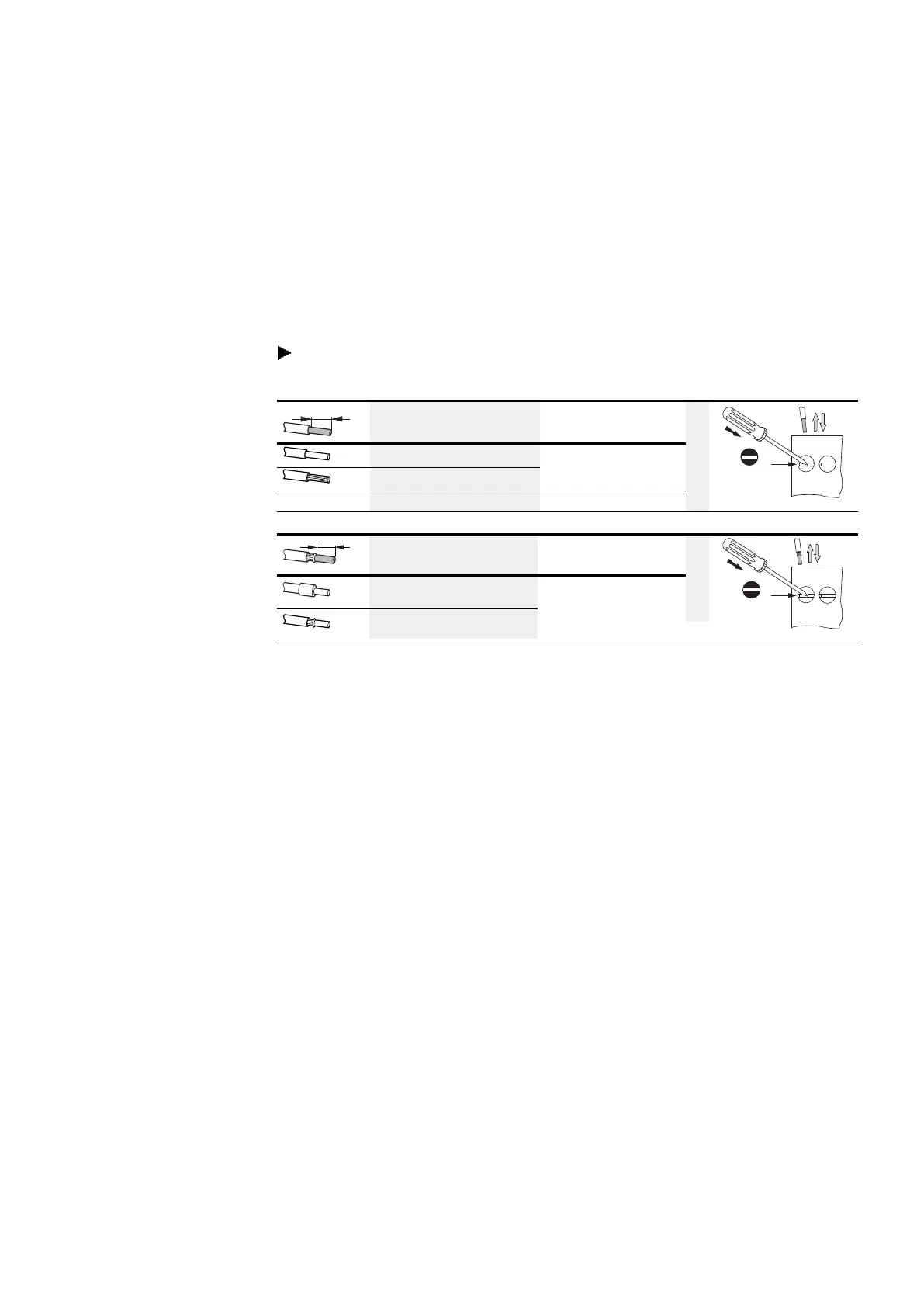

 Terminal capacity
in mm²

0.4 x 2.5 mm
Solid
0.2 up to 2.5
Flexible
 Conductor cross section AWG
min 24 - max 14
8 mm (0.31”)
 Terminal capacity
in mm²

0.4 x 2.5 mm
Solid cable with ferrule
0.25 up to 1.5
Flexible with ferrule

easyE402/24 MN050009ENEaton.com
67
