2. Installation
2.3 Mounting

> 30 mm
(> 1.2")
> 30 mm
(> 1.2")
> 30 mm
(> 1.2")
> 30 mm
(> 1.2")

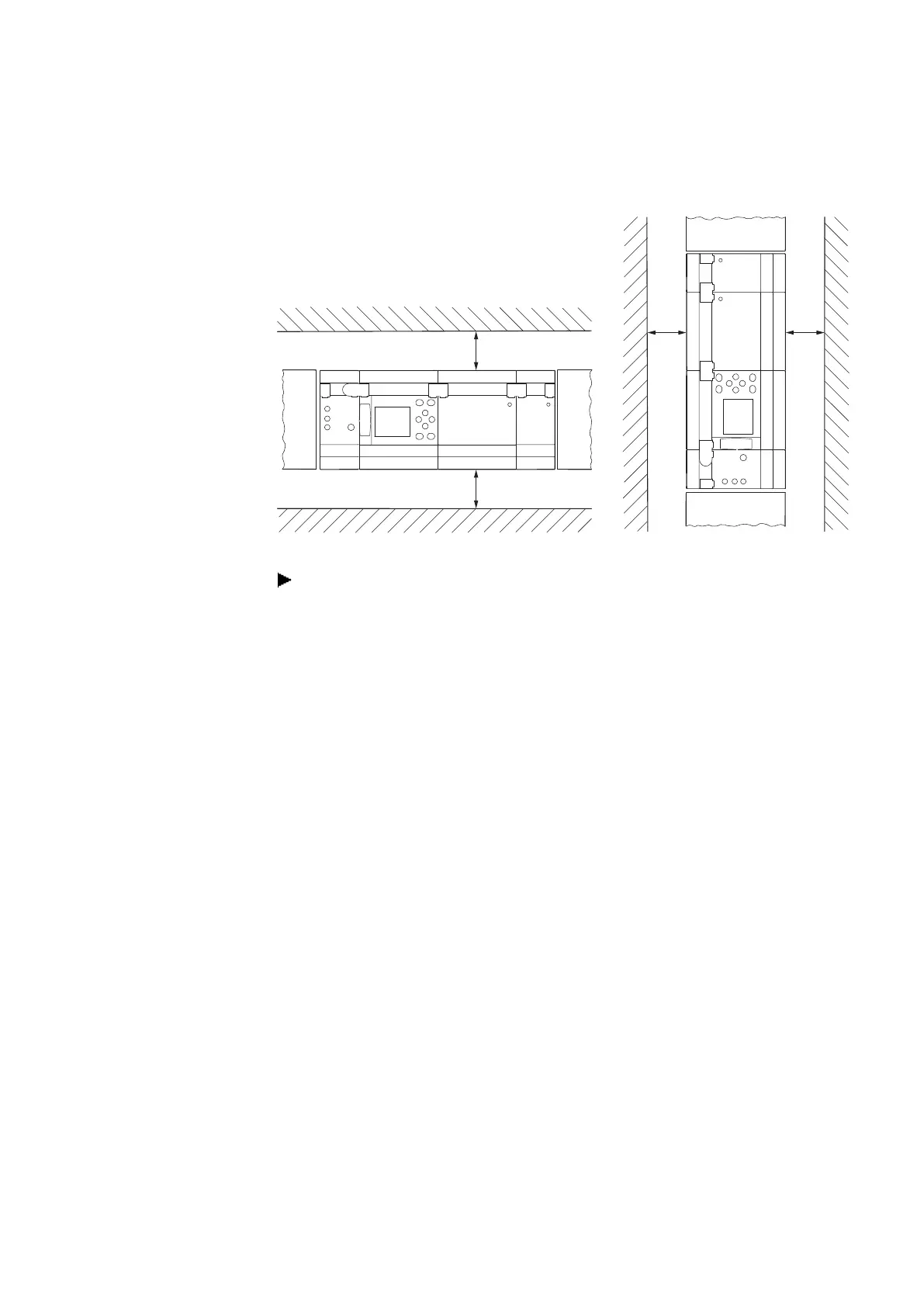

Fig. 9: Min. clearance of 3 cm
Snap the base device and every expansion onto a mounting rail
or mount every device using ZB4-101-GF1 device feet
